Sound insulation panels with membrane absorber

The silver enemy of noise #SH0081

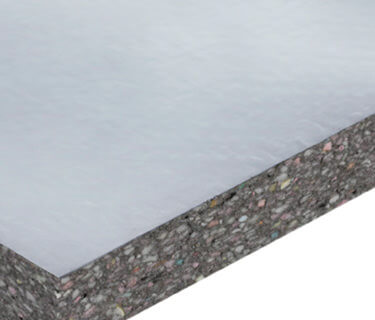

Heavy foam absorption panels with surface lamination

  • Rectangular panel (100 cm x 50 cm) with silver, smooth surface
  • Oil-resistant membrane
  • Multi-coloured absorption core
  • Suitable for different applications, e.g. machine enclosures, ventilation duct, boat motor rooms, heat pumps

In 5 simple steps to your perfect acoustics:

Quantity delivered

Your chosen product is shipped in packs of 1.
Ready configured? Continue here

Your choice:

incl. VAT  excl. Shipping

Membrane absorber SH0081 – The silver enemy of noise

  • Heavy foam absorber with liquid and oil-resistant aluminium membrane
  • Robust, temperature-resistant, easy to work, cut and clean
  • Reduces material vibrations and structure-borne sound, ideal for anti-drumming and sound insulation in the technical area
Heavy foam absorption panels with surface lamination

Product data

Format, surface
Rectangular panel (100 cm x 50 cm), aluminium surface
Material thicknesses
2 cm, 3 cm, 4 cm, 5 cm
Material
Heavy acoustic foam
Colours
Silvery, shiny surface, multicoloured mottled heavy acoustic foam
Fire classes
FMVSS 302 (DIN 75200)

More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article (German).

Fastening options
Without, Self-adhesive equipment
Lamination options
Laminated with heavy acoustic foil for even more effective insulation of structure-borne sound and sound absorption in the low frequency range
Temperatureresistance
Long-term: - 40 °C to + 100 °C, briefly also over 100 C
Thermal conductivity
0,033 W/mK – DIN 52612
Harmful substance information
Mineral fibre free
Tolerance
This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.
Recommended accessories
Aluminium tape for sealing seams and panel transitions

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

Absorption values

The measurements of the absorption coefficient were performed on polyester acoustic foams from RWTH Aachen. All values refer to absorbers with a size of 100 cm x 50 cm and were calculated according to DIN 52212.


Frequency
range
2cm
Height
2 cm
3cm
Height
3 cm
4cm
Height
4 cm
5cm
Height
5 cm
125 Hz 0,05 0,08 0,12 0,18
250 Hz 0,09 0,10 0,22 0,30
500 Hz 0,30 0,42 0,75 0,83
1000 Hz 0,48 0,75 0,89 0,92
2000 Hz 0,91 0,99 0,91 0,88
4000 Hz 0,90 0,80 0,85 0,91
Sound absorber/ sound insulation in the reverberation chamber when determining the absorption values
Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions such as RWTH University or the Technical University in Aachen. The sound absorption coefficients according to DIN 52212 stated above were calculated in extensive measurements.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 60 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

  • Use of high quality acoustic foams from Germany
  • Precision manufacturing on the latest CNC cutting machines and systems
  • Standard solutions or individual small and series manufacturing of noise insulation
  • Advice, planning, production and brokering of assembly partners
An aixFOAM employee manufactures sound absorbers for sound insulation.
Brand quality
from the manufacturer
"Made in Germany"
Production
for you, individually
in a few days
Experience
for 60 years
soundproofing experts
Award
ISO 9001:2015 certified
The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

‘SH0081 perfect for sound insulation on machines and vehicles. Its high mass reduces noise and vibrations and its surface lamination makes it resistant to dirt, hydrocarbons, oils, grease, fuels and even some acids. I recommend our aluminium tape to seal seams and panel transitions.’

Manuel Buschmann, customer advisor
