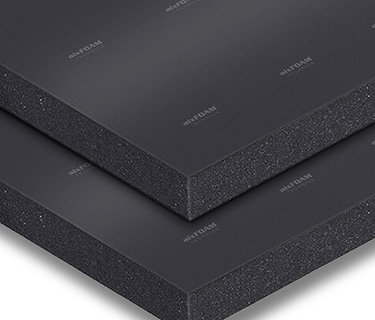

Rectangular insulation panel (100 cm x 50 cm) with a smooth surface
Flexible broadband absorber for technical applications
Air- and waterproof, without any waterproofing treatment
Integrated vapor barrier, highly emissive surface
Fire performance: B-s3,d0 in accordance with EN 13501, IMO Res. MSC.307(88), and IMO MSC/Circ. 1004
Suitable for thermal insulation in damp rooms, for camper conversions, insulation in automotive and marine construction, thermal insulation for refrigeration, ventilation, and air conditioning systems, and thermal insulation for pool pumps as well as heating and plumbing systems
Cuts, punched parts, special sizes possible upon request
Material
Closed-cell elastomer
Colours
Black
Fire behaviour
B-s3,d0 according to EN 13501
IMO Res. MSC.307(88); IMO MSC/Circ. 1004 (Directive MED 2014/90/UE Modules B and D)
Fastening options
Without, STICKY self-adhesive equipment
Temperatureresistance
-40° C - 90° C (with self-adhesive equipment) /-45°C - 110° C (without self-adhesive equipment)
Thermal conductivity
EN 12667 / EN ISO 8497
At an average temperature of 0 °C
≤32 mm: λ ≤0,033 W/m∙K
32 mm: λ ≤0,034 W/m∙K
At an average temperature of +40 °C
≤ 32 mm: λ ≤0,037 W/m∙K
> 32 mm: λ ≤0,038 W/m∙K
Water vapour diffusion resistance factor
EN 13469 / EN ISO 12086
≤25 mm: μ ≥ 10000
≥30 mm: μ ≥ 7000
Harmful substance information
CFC- and HCFC-free
Tolerance
This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.
More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.
Use of high-quality raw materials from Germany and the EU
Precision manufacturing on state-of-the-art CNC cutting machines and systems
Standard solutions or customised small-batch and series production of sound insulation
Consulting, planning, manufacturing and referral of assembly partners
Brand quality
from the manufacturer „Made in Germany“
Production
for you, individually in a few days
Experience
for 65 years soundproofing experts
Award
ISO 9001:2015 certified
Areas of application
„Our airtight and waterproof ISOLATE thermal insulation mat is ideal for insulation and sealing applications in industrial settings. The material is easy and flexible to work with and features a vapour barrier, without the need for any additional impregnation“
Matthäus Banduch, Customer advisor
We are here for you!
Do you need help or do you have any questions about the product?
Use our help area with brief answers to the most frequently asked questions from our customers.
Of course we are happy to help you with advice, free of charge.
