Control technology without noise
Sound insulation in switch cabinets and casings
  • Less noise, e.g. from fans, processors or cooling systems
  • Improved working conditions and safety
  • Sound absorbers corresponding to the applicable fire protection conditions
  • Sound insulation made individually for you with CNC technology
This is where you can find out more about soundproofing for switch cabinets and housings.
Free advice
We are here for you!
Use our help area Help area or get free advice! +49 (0)2403 / 83830 - 22
  1. Art.nr. SH0011 MH
    Chemically resistant
    Highly effective sound insulation from Duromer acoustic foam
    • Rectangular panel (100 cm x 50 cm) with homogeneously porous surface
    • Extraordinary heat and flame resistance according to DIN4102 B1 (except with heavy foil laminate)
    • Chemically resistant
    • Avail...
  2. Art.nr. SH0021 MH
    Chemically resistant with nubs
    Highly effective nubbed foam made from Duromer acoustic foam
    • Rectangular panel (100 cm x 50 cm) with homogeneously porous surface with nubbed profile
    • Extraordinary heat and flame resistance according to fire protection class DIN4102 B1 (except with hea...
  3. Art.nr. SH0011
    Smooth. And good.
    Flexible smooth sound insulation mats
    • Rectangular panel (100 cm x 50 cm), with smooth surface
    • Broadband absorber
    • In anthracite
    • Usable for sound insulation, e.g. in machinery construction, vehicle production, machine casings
    starting at
    €32.46
    Price per package unit
    incl. 19% VAT
  4. Art.nr. SH0131
    Flexible against structure-borne sound
    Highly effective heavy acoustic foil for structure-borne sound insulation
    • Rectangular panel (100 cm x 50 cm) with self-adhesive rear
    • Ideal for minimising material vibrations
    • Flexibly usable in technical application areas, e.g. chassis and vehicle produc...
    starting at
    €113.53
    Price per package unit
    incl. 19% VAT
  5. Art.nr. SH0061
    The strong black one

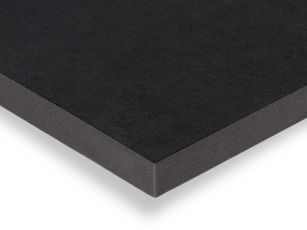

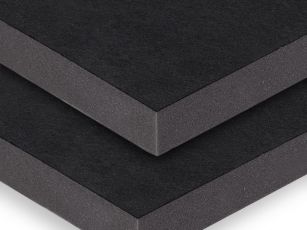

    Acoustic panel with robust textile surface
    • Rectangular panel (100 cm x 50 cm) with robust textile surface lamination
    • Textile colour black / absorption foam in anthracite
    • Suitable for use in, e.g. machine production, claddings, cabins
    ...
    starting at
    €109.15
    Price per package unit
    incl. 19% VAT
  6. Art.nr. SH0021
    Industry standard in absorption
    Acoustic nubbed foam for industrial sound insulation
    • Rectangular panel (100 cm x 50 cm) with nubbed profile
    • In anthracite
    • Many uses, e.g. for machinery casings, engines, electronic devices, compressors, switch cabinets
    ...
    starting at
    €56.17
    Price per package unit
    incl. 19% VAT
  7. Even more choices?

    Felt-laminated acoustic elements, classic acoustic foams and much more can be found in our CLASSIC LINE.

  8. Even more choices?

    Higher fire protection, more design, printable elements and much more can be found in our ARCHITECT LINE.

Soundproofing in the switch cabinet and housing

Switch cabinets or other installations with electrical components generate noises when running, which in some cases are perceived as loud or even disturbing. The housings, which mostly comprise lightweight metal or plastic, quickly start to vibration and emit an irritating drumming. If the noise pollution gets too much, it becomes sensible to retrofit the switch cabinet with sound insulation.

Above all when used in industry, where a large number of machines and devices drives up the sound pressure level, statutory regulations (e.g. workplace directives, noise protection ordinance) apply, which promote corresponding sound insulation measures.

Clattering, drumming, roaring. If noises from the switch cabinet become a disturbing factor, dampened the housing is a good way to prevent noise.
Soundproofing a switch cabinet lowers the sound pressure level.

How can switch cabinets and housing be dampened properly?

Firstly the exact cause of the noise should be identified in order to find a suitable method for switch cabinet sound insulation. If the noise is caused by components such as fans or processors, sound insulation mats should be used to absorb direct sound (air-borne sound). If the noise is due to vibrations or material vibrations in the housing (structure-borne air), switch cabinet anti-humming measures are sensible.

Sound absorbers against direct sound / air-borne sound

In order to absorb direct sound, the housing of the switch cabinet should be clad with open-pore sound insulation mats such as acoustic insulation mats with smooth surface or the nubbed foam for technical dampening. The incident noise is guided deep into the absorbers and neutralised.

Sound absorbers with special surface laminations such as the acoustic panels with a robust textile surface also protect the sensitive components from dirt and dust accumulations, which is sensible above all in the industrial area.

In order to simplify installation even in narrow housings and difficult positions, all our aixFOAM sound absorbers are available with practical self-adhesive kit.

Housing anti-drumming, remove material vibrations

In order to reduce switch cabinet material vibrations, the material of the housing must be reinforced. This is called "anti-drumming". For switch cabinet anti-drumming, elements with a high intrinsic weight are recommended, above all our anti-humming mats made from heavy acoustic foil.

The heavy acoustic foil have an above-average surface weight, is wafer-thin and very flexible. Thin-walled housings should ideally be fully clad with the self-adhesive foil.

The heavy foil can also be combined with porous sound absorbers made from acoustic foam in order to dampen direct sound at the same time as dampening material vibrations.

It is also possible in the our product configurator to order your sound insulation mats directly fro the factory with a heavy acoustic foil lamination. Simply choose the corresponding option for this.

The self-adhesive heavy acoustic foam is ideal for switch cabinet anti-humming.
Switch cabinet anti-drumming made easy: With the flexible, self-adhesive anti-drumming mat made from heavy acoustic foam, vibrations and material oscillations can be quickly and easily reduced.

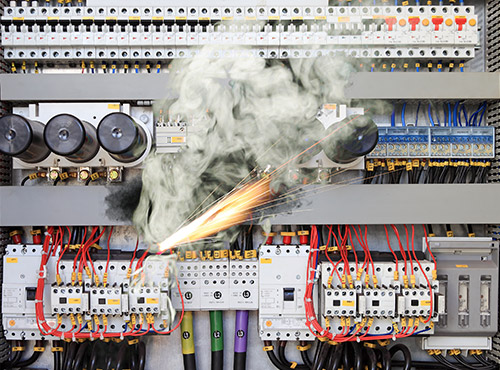

Heat development and fire protection when soundproofing inside the switch cabinet – what has to be noted?

When soundproofing switch cabinets, the heat development plays a large role. The many technical components in the housing and the high packing density increase the risk of a short circuit and overheating.

In order to keep heat development and fire risk low, the sound absorbers should be installed with sufficient distance from the components in the switch cabinet. When dampening the cabinet, ensure there is sufficient airflow and also a corresponding heat removal in order to prevent heat build-up in the housing. Additionally, it is sensible to install a separate air or cooling duct in the housing along with the soundproofing.

In order to ensure the necessary safety in an emergency, our aixFOAM sound insulation mats are available in various fire protection classes. Above all, our sound absorbers from the "Engineer Line" with the highest fire protection class DIN 4102 B1 are recommended for use in switch cabinets and housings. Ideally, you should find out about possible required fire protection conditions when planning your switch cabinet.

aixFOAM sound absorbers with a higher fire protection class are particularly suitable for use in the switch cabinet, in housings and on components with heat development.
Sound absorbers with higher fire protection class ensure safety in case of fire.

Why are sound absorbers from aixFOAM the best solution for dampening your switch cabinet or housing?

As a manufacturer of high quality sound absorbers, we know that is critical for effective soundproofing in the switch cabinet or housing. In order to meet these requirements, we have developed sound absorbers that are specifically suitable for this use.


Icon sound insulation
Sound insulation
maximum
sound absorption
Icon sound absorbers with profiled surfaces
Surfaces
Profiles to
choose from
Icon sound absorber heights
Heights
different heights
can be selected
Icon installation sound absorbers
Installation
multiple
options
Icon sound absorber fire protection
Fire protection
in different
classes
Icon sound absorber resistance
Protection
against dirt
and liquids


As a result of 60 years' experience and constant optimisations of our sound absorbers, we have succeeded in developing effective and flexible acoustic elements, which are ideal for use in switch cabinets and housings. They reduce material vibrations and noise and are available in various fire safety classes and material thicknesses. Choose your favourites from several profiles. Thanks to various installation options, such as the practical self-adhesive kit, the sound absorbers can be installed particularly easily in the housings and switch cabinets.

Now it's your turn: Get the right soundproofing for your switch cabinets and casings!

Whether for retrofitting or directly for building a switch cabinet: Now choose the right sound insulation from our aixFOAM products for switch cabinets and casings or use our free advice service. Our experts will support you with your projects and help you find the optimum solution for your requirements.
