Heavy acoustic foam for sound insulation

Base material with unlimited possibilities

Art.nr.: SH0071

Heavy foam absorption panels

Rectangular panel (100 cm x 50 cm), with smooth surface

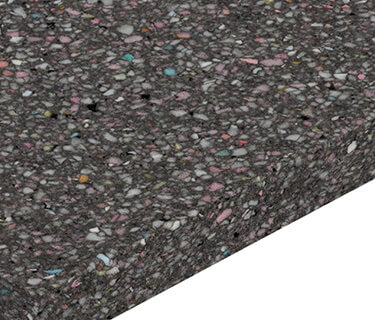

Multi-coloured heavy foam
For different application areas, e.g. machine casings, insulation for engines, engine chambers, machine insulation

In 4 simple steps to your perfect acoustics:

*Material thickness

Different material thicknesses, profiles and types affect the efficiency of certain frequency ranges. The fact is that the thicker the material, the better the absorption effect, especially for low frequencies. On account of the high quality of the specifically developed acoustic core an efficient sound absorption is achieved even with low material thicknesses.

Depending on the application area you can adjust the absorption efficiency to your personal requirements by combining different material thicknesses and acoustic elements. Our team of experienced experts will be glad to support you with professional advice and planning.

Close
*Acoustic heavy foil lamination

Heavy acoustic film lamination

These are heavy, very flexible films without lining material that are minerally filled. The heavy acoustic film has an above-average surface weight, whereby deep frequencies and material vibrations are absorbed. The composition of the heavy acoustic film provides it with excellent absorption properties, including in low temperatures. In addition, the material is designed to be flame-retardant and is laminated under your aixFOAM basic product as a base material with this option. Alternatively, the aixFOAM heavy acoustic film SH0131 is also available as an individual product (refer to overview of products).

Processing instructions Acoustic Heavy Foil: Our Acoustic Heavy Foil is equipped with a specially developed acrylic based adhesive system. The adhesive system must be used only on flat surfaces at macro level, e.g. sheet metal and aluminium. On rough surfaces the adhesive system can be used as mounting asssistance only. Further information is available in our technical datasheets and processing instructions, which could be send free of charge upon request.

Close
*Mounting options

Without mounting aid

You would like to attach or glue the acoustic elements yourself? Then select "None". Please note that a glue-free adhesive is used when gluing. However, we always recommend our self-adhesive equipment for gluing.

aixFOAM self-adhesive equipment

The back of the absorber is coated by machine in the factory with a solvent-free adhesive system and covered with lining paper. This lining paper must be removed before bonding.
/div>
Assembly/Suspension Cassette without accessory

>You will receive your individual sound absorber framed by a high-quality assembly/suspension cassette made of anodised aluminium. The aixFOAM cassette can be used for horizontal, vertical or floating assembly.
/div>
aixFOAM self-adhesive equipment

The back of the absorber is coated by machine in the factory with a solvent-free adhesive system and covered with lining paper. This lining paper must be removed before bonding.
/div>
Assembly/Suspension Cassette without accessory

>You will receive your individual sound absorber framed by a high-quality assembly/suspension cassette made of anodised aluminium. The aixFOAM cassette can be used for horizontal, vertical or floating assembly.
/div>
Assembly/Suspension Cassette including aixFOAM oscillating plugs

You will receive your individual sound absorber framed by a high-quality assembly/suspension cassette made of anodised aluminium. aixFOAM oscillating plugs serve the professional spaced-erection of the aixFOAM flat-mounted- or pendant assembly cassettes. The spacing prevents the transmission of acoustic vibrations to the substrate (masonry). In addition, the efficiency of all aixFOAM absorbers in the lower range frequencies is enhanced in combination with the aixFOAM flat-mounted- or pendant assembly cassettes.
/div>
Assembly/Suspension Cassette with aixFOAM pendant system Style

The aixFOAM pendant system style serves the suspension of aixFOAM pendant assembly cassettes. By means of this pendant system, you have the possibility of suspending the aixFOAM sound absorber of your choice, in combination with the aixFOAM flat-mounted or pendant assembly cassettes, either horizontal suspended from a ceiling, or vertically from a side walling. The suspension cords have a maximum length of around 1000 mm, and can be individually shortened upon erection, so that the aixFOAM sound absorber can be optimally placed.
/div>
Assembly/Suspension Cassette with aixFOAM pendant system Basic

The aixFOAM pendant system basic serves the suspension of aixFOAM pendant assembly cassettes. By means of this pendant system, you have the possibility of suspending the aixFOAM sound absorber of your choice, in combination with the aixFOAM flat-mounted or pendant assembly cassettes, either horizontal suspended from a ceiling, or vertically from a side walling. The suspension cords have a maximum length of around 1000 mm, and can be individually shortened upon erection, so that the aixFOAM sound absorber can be optimally placed.

Close
*Pack quantity Für die Auswahl der richtigen Menge an Schallabsorbern kann man keine pauschale Aussage treffen, denn diese ist von einer ganzen Reihe von Faktoren abhängig und damit sehr individuell. Generell empfehlen wir, bei der Schalldämpfung schrittweise vorzugehen. Bei leichtem Nachhall/ Lärm genügt es häufig bereits, ~ 10% der Wand- und Deckenflächen mit Schallabsorbern auszustatten. Bei erhöhtem Hall/ Lärm empfehlen wir etwa ~ 20% und bei starkem Nachhall/ Lärm bis zu ~ 30% der Raumoberfläche mit Schallschutz auszurüsten. Sollten Sie unsicher sein, beginnen Sie zunächst mit einer kleineren Menge Absorber und ergänzende Sie diese bei Bedarf. Das schont nicht nur Ihren Geldbeutel, sondern beugt auch einer „Überdämpfung“ und somit einer unangenehm künstlichen Akustik vor. Um zu ermitteln, welche Menge an Schallabsorbern für Ihre Anwendung angemessen ist, nutzen Sie unseren Mengenrechner oder wenden Sie sich direkt an unsere Fachplaner für eine kostenfreie Beratung. Close

* Required Fields

How many packs do you need?

1 Pack = = 1 m²

Ready configured? Continue here

Your choice:

Do you need help?
+49 2403 / 83830 - 22
sales@aixfoam.de

Please, do not hesitate to contact us.

Phone: +49 2403 / 83830 - 22
Monday - Friday 8 am - 5 pm CET

Email: sales@aixfoam.com
24 hours a day

What's in the box?

1 Pack =
= 1 m²

€90.71

incl. 16 % VAT

excl. Shipping

Heavy acoustic foam SH0071 – Base material with unlimited possibilities

Heavy foam absorber with high mass,ideal for low frequencies
Robust, temperature-resistant, permanently elastic, easy to work and cut
Reduces material vibrations and structure-borne sound, ideal for anti-drumming and sound insulation in the technical area

Product data

Format, surface	Rectangular panel (100 cm x 50 cm), flat surface
Material thicknesses	1 cm, 2 cm, 3 cm, 4 cm, 5 cm
Special sizes	Cuts, punched parts, special sizes possible upon request
Material	Heavy acoustic foam
Colours	Multicoloured mottling
Fire classes	FMVSS 302 (DIN 75200) More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article (German).
Fastening options	Without, self-adhesive kit
Lamination options	Laminated with heavy acoustic foil for even more effective insulation of structure-borne sound and sound absorption in the low frequency range
Temperatureresistance	- 40 °C to + 100 °C
Thermal conductivity	0,033 W/mK – DIN 52612
Harmful substance information	mineral-fibre free
Toleranz	This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

Absorption values

The measurements of the absorption coefficient were performed on polyester acoustic foams from RWTH Aachen. All values refer to absorbers with a size of 100 cm x 50 cm and were calculated according to DIN 52212.

Frequency range	Height 1 cm	Height 2 cm	Height 3 cm	Height 4 cm	Height 5 cm
125 Hz	0,05	0,09	0,16	0,19	0,36
250 Hz	0,19	0,38	0,55	0,79	0,98
500 Hz	0,55	0,71	0,86	1,14	1,15
1000 Hz	0,78	1,03	1,11	1,11	1,01
2000 Hz	0,87	1,05	1,00	0,91	1,03
4000 Hz	0,76	0,81	0,75	0,85	0,87

Sound absorber/ sound insulation in the reverberation chamber when calculating the absorption coefficients

Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions such as RWTH University or the Technical University in Aachen. The sound absorption coefficients according to DIN 52212 stated above were calculated in extensive measurements.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 60 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

Use of high quality acoustic foams from Germany
Precision manufacturing on the latest CNC cutting machines and systems
Standard solutions or individual small and series manufacturing of noise insulation
Advice, planning, production and brokering of assembly partners

An aixFOAM employee manufactures sound absorbers for sound insulation.

Brand qualityt

from the manufacturer
"Made in Germany"

Production

for you, individually
in a few days

Experience

for 60 years
soundproofing experts

Award

ISO 9001:2015 certified

Areas of application

Loudspeaker production

The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

„Our heavy acoustic foam SH0071 with its high mass is suitable for noise insulation and structure-borne sound insulation in the technical area. Apart from standardised sound insulation panels, we also offer the production of special shapes. This is particularly interesting for use on machines. As a result of the practical self-adhesive kit, the absorber can be installed easily, even in difficult positions.“

Holger Thoma, customer advisor

We are here for you!

Do you need help or do you have any questions about the product?

Use our help area with brief answers to the most frequently asked questions from our customers.

Of course we are happy to help you with advice, free of charge.

+49 2403 / 83830 - 22
Monday to Friday
08:00 hours to 17:00 hours

sales@aixfoam.com
Daily from 00.00 – 24.00 hours

Impressions?

This is where you can find some application pictures of our heavy acoustic foam SH0071.
