aixFOAM cable system "DUO"
  • Two tension cables in the set for ceiling assembly of the acoustic elements SH010PLAIN
  • Length at delivery ~10 metres
  • The length can be shortened individually
In 2 simple steps to your perfect acoustics:

* Required Fields

Your choosen product is shipped in packs of 1.
How many packs of 1 do you need?

Sorry, the maximum amount you can order is 10000.

Sorry, the minimum amount you can order is 1.

1 Pack = = 1
Ready configured? Continue here
Your choice:
Please, do not hesitate to contact us.

Phone: +49 2403 / 83830 - 22
Monday - Friday 8 am - 5 pm CET

Email: sales@aixfoam.com
24 hours a day
What's in the box?
You will receive a total of 1 packing unit with the following content:

Cable system "DUO"
Art.nr. seilsystem-duo

1 Pack =
= 1

Cable system "DUO" – Elegantly gets your sound insulation in the air

  • Two tension cable systems for horizontal assembly of the aixFOAM sound absorber SH010PLAIN
  • Easy tensioning of the cable thanks to practical tension elements
  • Expandable with adapter sets for various bases
Cable system DUO for suspended assembly of sound absorbers SH010PLAIN

Product data

Contents The cable system set comprises:
  • Concrete screws for anchoring to the wall

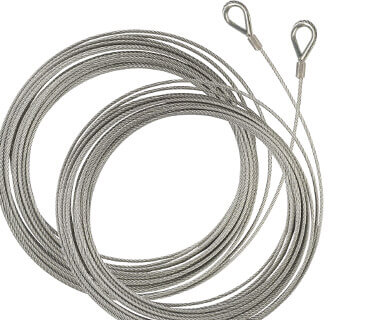

  • Two wire ropes with unilateral loop, Ø 3 mm, L = 1020 cm (can be shortened individually)
  • Tension elements (hook, nuts, tensioner, etc.) for tensioning the rope
Colour Silver gloss
Installation instructions Anchors are not used for the standard assembly of the cable system in concrete walls or prestressed concrete.
For assembly in limestone solid brick, natural stone with sealed joints, solid brick made from lightweight concrete and solid brick, please use our brickwork adapter set.
For installation on steel supports, please use our steel support adapter set.
Drill holes (concrete/
prestressed concrete binder)
Hole diameter: Ø 6 mm
Drilling depth: 60 mm
Recommended accessories The cable system serves the hanging assembly of the sound absorber SH010PLAIN.
Outline / Layout Cable system DUO for suspended assembly of sound absorbers

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 60 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

  • Use of high quality acoustic foams from Germany
  • Precision manufacturing on the latest CNC cutting machines and systems
  • Standard solutions or individual small and series manufacturing of noise insulation
  • Advice, planning, production and brokering of assembly partners
An aixFOAM employee manufactures sound absorbers for sound insulation.
Brand qualityt
from the manufacturer
"Made in Germany"
Production
for you, individually
in a few days
Experience
for 60 years
soundproofing experts
Award
ISO 9001:2015 certified
The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

„The practical cable system "DUO" serves the easy and elegant assembly of our horizontally suspended sound absorber SH010PLAIN. Thanks to the practical tensioning elements, the cables can be tightened and shortened individually to the desired length. Before tensioning the cables, it is essential that you check the substructure is solid and, if applicable, use our adapter sets.“
