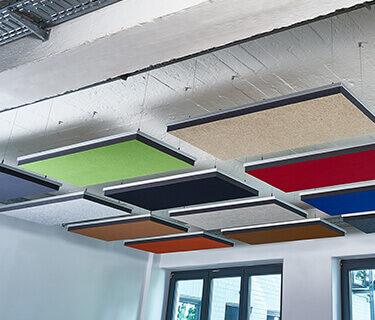

Ceiling absorbers for reverberation-free acoustics and less noise
Ceiling absorbers in various designs and colours
Various mounting options: STICKY (makes your aixfoam self-adhesive), in the upFRAME (mounting cassette) with GoodVibes (vibration anchors) or on the HANGER/HANGER grace suspension system
Can be used flexibly to optimise the room acoustics on almost any ceiling
aixFOAM CEILOR – Sound insulation for every ceiling
Ceiling absorbers for reverberation-free acoustics and less noise
Choice of different designs and colours
Flexible mounting options for any ceiling
Product data
Format, surface
FLAT: Rectangular plate (100 cm x 50 cm), even surface
WAVER: Rectangular plate (100 cm x 50 cm), Nub profile
GIZA: Rectangular plate (100 cm x 50 cm), Pyramid profile
SMOOD: square plate (50 cm x 50 cm, if absorbers in the mounting cassettes are selected (100 cm x 50 cm), two absorbers are included per cassette), flat surface, rounded edges
MAYA: Rectangular plate (100 cm x 50 cm), Trapezoidal profile surface
ROWS: Rectangular plate (100 cm x 50 cm, 50 cm x 50 cm), triangular structure
ROW Tiles: square plate (50 cm x 50 cm), triangular structure
FELT: Rectangular plate (100 cm x 50 cm), Acoustic foam core with felt surface
MAYA: 3,5 cm (2,0 cm basic/ 1,5 cm trapezium), 4,5 cm (2 cm basic/ 2,5 cm trapezium), 6,5 cm (3 cm basic/ 3,5 cm trapezium)
ROWS: 3 cm (1,0 cm basic/ 2 cm Triangular profile), 5 cm (2 cm basic/ 3 cm Triangular profile), 7 cm (2 cm basic/ 5 cm Triangular profile), 10 cm (3 cm basic, 7 cm Triangular profile)
ROW Tiles: 3 cm (1,0 cm basic/ 2 cm Triangular profile), 5 cm (2 cm basic/ 3 cm Triangular profile), 7 cm (2 cm basic/ 5 cm Triangular profile), 10 cm (3 cm basic, 7 cm Triangular profile)
FELT: Open-cell PUR acoustic foam with acoustic felt lamination
SMOOD in white grey/titanium grey: Duromer acoustic foam
Colours
Anthracite, steel grey, raspberry red, orange, white grey, titanium grey (colour depends on selected sound absorber)
Fire classes
PUR-E (without flame protection), PUR-ES (without flame protection), PUR-ES++ (UL94HF1), PUR-E+ (FMVSS302), PUR-E++ (DIN4102 B2), DIN 4102 B1 only for SMOOD, all other ceiling absorbers on request (see article CEILOR Plus), fire class depends on colour selected
upFRAME with HANGER grace (The exclusive hanging system)
NOTE: For optical reasons, mounting the absorber in a upFRAME is only recommended starting at a material thickness of at least 3 cm, as otherwise the base of the absorber will be lower than the edge of the cassette.
Temperatureresistance
- 40 °C to + 100 °C
SMOOD in white grey/titanium grey: - 200 °C to + 200 °C
UV-resistance
UV protection against yellowing thanks to UV blocker additive
SMOOD in white grey/titanium grey: Maximum UV resistance, does not yellow
For further information, please refer to our matching aixFOAM knowledge article (German) on the topic of "Light ageing - UV yellowing protection".
Harmful substance information
Mineral fibre free, CFC-free
SMOOD in white grey/titanium grey: Certified according to Eco-Tex Standard 100 as not harmful to health, mineral-fibre free, CFC-free, propellant-free
Tolerance
This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.
In the production (foaming) of this acoustic material different sized pores (voids) can arise. Voids are typical for the material, do not represent a quality defect and do not affect the acoustic properties of the absorber.
More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.
Absorption values
The measurements of the sound absorption coefficient were determined according to DIN EN ISO 354 (reverberation chamber) and refer to an absorber area of 100 cm x 50 cm/50 cm x 50 cm. The exact absorption values can be found on the article pages of our respective sound absorbers.
Profit from sound insulation directly from the manufacturer!
At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 65 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.
Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.
Use of high quality acoustic foams from Germany
Precision manufacturing on the latest CNC cutting machines and systems
Standard solutions or individual small and series manufacturing of noise insulation
Advice, planning, production and brokering of assembly partners
Brand quality
from the manufacturer "Made in Germany"
Production
for you, individually in a few days
Experience
for 65 years soundproofing experts
Award
ISO 9001:2015 certified
Areas of application
‘Thanks to the various mounting options, the aixFOAM CEILOR can be flexibly adapted to almost any room situation. The self-adhesive absorbers impress with their quick, easy mounting. Fastening using the vibration anchors and cable systems scores with maximum flexibility.’
Agnes Hermanns, customer advisor
