Bass absorber/ Bass trap for low tone absorption
Bass absorber/ Bass trap for low tone absorption
Low frequencies under control
Art.nr.: SH012
Bass absorber/ Bass trap for low tone absorption
Low frequencies under control
Art.nr.: SH012

Bass absorber/ Bass trap for low tone absorption

Low frequencies under control
Art.nr.: SH012
Bass absorber sets in two different sizes
  • Body shape: Prism, bevelled wall edges
  • In anthracite, raspberry red, orange, light grey
  • Depending on the size designed for different cutoff frequencies
  • Highly-effective as bass dampening in the HiFi room, home cinema, sound studio, music room
In 4 simple steps to your perfect acoustics:

* Required Fields

Your choosen product is shipped in packs of 1.
How many packs of 1 do you need?

Sorry, the maximum amount you can order is 10000.

Sorry, the minimum amount you can order is 1.

1 Pack = = 1
Ready configured? Continue here
Your choice:
Please, do not hesitate to contact us.

Phone: +49 2403 / 83830 - 22
Monday - Friday 8 am - 5 pm CET

Email: sales@aixfoam.com
24 hours a day
What's in the box?
You will receive a total of 1 packing unit with the following content:

Bass absorber/ Bass trap for low tone absorption
Art.nr. SH012

1 Pack =
= 1
€203.42
incl. 19 % VAT

Bass absorber/ Bass trap SH012 – Low frequencies under control

  • Prism-shaped bass trap for effective soundproofing at low frequencies
  • Excellent price-performance ratio
  • Improve the bass reproduction for a clear, dry sound without flatter echoes, drumming and humming
Bass traps and bass absorbers in various colours

Product data

Format, surface Prism (Height: 100 cm), smooth surface
Edge lengths 25 cm x 25 cm, 46 cm x 46 cm
Material Open-cell PUR acoustic foam

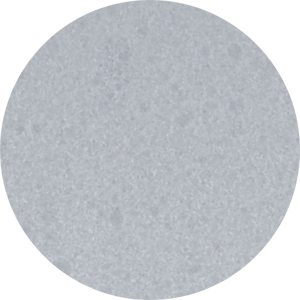

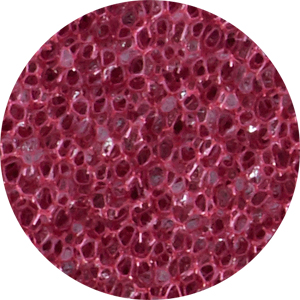

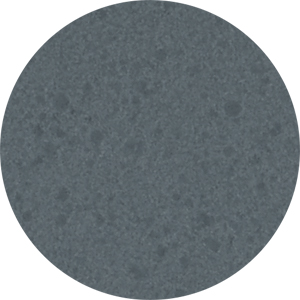

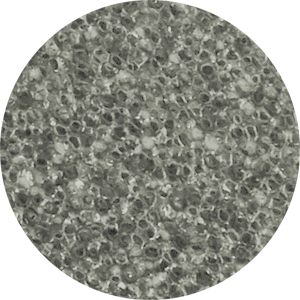

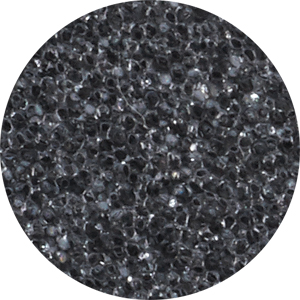

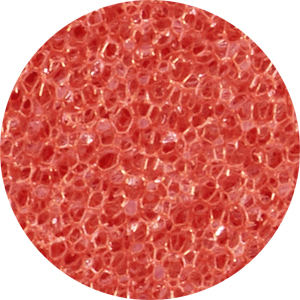

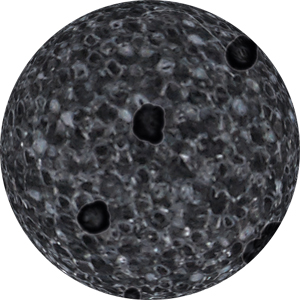

Colours Anthracite, light grey, raspberry red, orange
Fire classes UL 94 HF 1, FAR 25.853, fire class depends on colour selected
More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article (German).
Fastening options Free-standing, intrinsically stable
Temperature­resistance - 40 °C to + 100 °C
UV-resistance UV protection against yellowing thanks to UV blocker additive
Tolerance This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.
In the production (foaming) of this acoustic material different sized pores (voids) can arise. Voids are typical for the material, do not represent a quality defect and do not affect the acoustic properties of the absorber.

Absorption values and installation

Unlike sound absorbers in baffle form, which are placed over large areas on wall or ceiling surfaces, it does not make sense to specify pure sound absorption levels for freestanding absorbers, such as our bass absorbers. These would not be meaningful or physically meaningful.

Therefore, our bass absorbers were tested by the RWTH University in extensive measurements according to DIN 52212 on their sound absorption effect, taking into account the equivalent absorption area. The complete test report with detailed explanations and all determined values can be found in the corresponding data sheet if required. We will gladly send you this on request.


Frequency
range
25cm
Edge length
25 cm x 25 cm
46cm
Edge length
46 cm x 46 cm
Low-frequency
cutoff
50 Hz 28 Hz
Maximum absorption
effect at
200 Hz 100 Hz
Bassabsorber/ Tieftonabsorber in korrekter Aufstellung
When installing bass absorbers, there are often misunderstandings. In this article (German), we have gathered detailed information on the correct setup and operation of our bass absorbers.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 60 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

  • Use of high quality acoustic foams from Germany
  • Precision manufacturing on the latest CNC cutting machines and systems
  • Standard solutions or individual small and series manufacturing of noise insulation
  • Advice, planning, production and brokering of assembly partners
An aixFOAM employee manufactures sound absorbers for sound insulation.
Brand qualityt
from the manufacturer
"Made in Germany"
Production
for you, individually
in a few days
Experience
for 60 years
soundproofing experts
Award
ISO 9001:2015 certified
The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

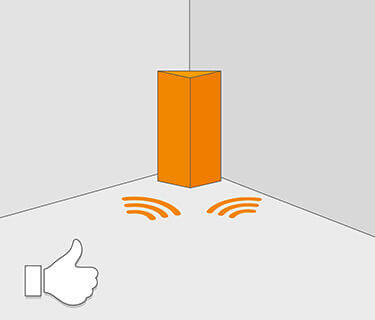

„With our bass trap SH012 you receive an all-rounder against irritating bass frequencies – and at a very good price-performance ratio. The larger the absorber selected, the lower the frequencies that can be absorbed. My tip: Stack several bass absorbers on top of each other to strengthen the effect even more. In this way you achieve a precise bass reproduction, without flatter echoes, drumming or humming. You must also ensure that the absorbers are placed in the corners with the points facing into the room.“

Volker Rings, customer advisor
We are here for you!

Do you need help or do you have any questions about the product?

Use our help area with brief answers to the most frequently asked questions from our customers.

Of course we are happy to help you with advice, free of charge.

+49 2403 / 83830 - 22
Monday to Friday
08:00 hours to 17:00 hours

sales@aixfoam.com
Daily from 00.00 – 24.00 hours

Impressions?

This is where you can find some application pictures of our bass absorber SH012.
