Ceiling sail / wall sail, rectangular, square, circle

Acoustic sail with removable fabric cover

Art.nr.: SH030

Acoustic sail for wall or ceiling installation

In eight attractive colours or for printing with your own motif
Removable cover made from acoustic stretch fabric
Effective acoustic foam core
Suitable for acoustic applications in, for example, offices, call centres, meeting and conference rooms, foyers, living rooms, etc.

In 4 simple steps to your perfect acoustics:

*Shape
*Fabric color
*Mounting options

Without mounting aid

You would like to attach or glue the acoustic elements yourself? Then select "None". Please note that a glue-free adhesive is used when gluing. However, we always recommend our self-adhesive equipment for gluing.

aixFOAM self-adhesive equipment

The back of the absorber is coated by machine in the factory with a solvent-free adhesive system and covered with lining paper. This lining paper must be removed before bonding.
/div>
Assembly/Suspension Cassette without accessory

>You will receive your individual sound absorber framed by a high-quality assembly/suspension cassette made of anodised aluminium. The aixFOAM cassette can be used for horizontal, vertical or floating assembly.
/div>
aixFOAM self-adhesive equipment

The back of the absorber is coated by machine in the factory with a solvent-free adhesive system and covered with lining paper. This lining paper must be removed before bonding.
/div>
Assembly/Suspension Cassette without accessory

>You will receive your individual sound absorber framed by a high-quality assembly/suspension cassette made of anodised aluminium. The aixFOAM cassette can be used for horizontal, vertical or floating assembly.
/div>
Assembly/Suspension Cassette including aixFOAM oscillating plugs

You will receive your individual sound absorber framed by a high-quality assembly/suspension cassette made of anodised aluminium. aixFOAM oscillating plugs serve the professional spaced-erection of the aixFOAM flat-mounted- or pendant assembly cassettes. The spacing prevents the transmission of acoustic vibrations to the substrate (masonry). In addition, the efficiency of all aixFOAM absorbers in the lower range frequencies is enhanced in combination with the aixFOAM flat-mounted- or pendant assembly cassettes.
/div>
Assembly/Suspension Cassette with aixFOAM pendant system Style

The aixFOAM pendant system style serves the suspension of aixFOAM pendant assembly cassettes. By means of this pendant system, you have the possibility of suspending the aixFOAM sound absorber of your choice, in combination with the aixFOAM flat-mounted or pendant assembly cassettes, either horizontal suspended from a ceiling, or vertically from a side walling. The suspension cords have a maximum length of around 1000 mm, and can be individually shortened upon erection, so that the aixFOAM sound absorber can be optimally placed.
/div>
Assembly/Suspension Cassette with aixFOAM pendant system Basic

The aixFOAM pendant system basic serves the suspension of aixFOAM pendant assembly cassettes. By means of this pendant system, you have the possibility of suspending the aixFOAM sound absorber of your choice, in combination with the aixFOAM flat-mounted or pendant assembly cassettes, either horizontal suspended from a ceiling, or vertically from a side walling. The suspension cords have a maximum length of around 1000 mm, and can be individually shortened upon erection, so that the aixFOAM sound absorber can be optimally placed.

Close

* Required Fields

4. Quantity delivered

Your choosen product is shipped in packs of 1.

How many packs of 1 do you need?

1 Pack = = 1 m²

Ready configured? Continue here

Your choice:

Do you need help?
+49 2403 / 83830 - 22
sales@aixfoam.de

Please, do not hesitate to contact us.

Phone: +49 2403 / 83830 - 22
Monday - Friday 8 am - 5 pm CET

Email: sales@aixfoam.com
24 hours a day

What's in the box?

1 Pack =
= 1 m²

We will send you a non-binding quote asap.

Coloured ceiling sail / wall sail SH030 creates a pleasant ambience

Rectangular, round or square ceiling and wall sails for horizontally suspended or handing installation
In 9 trendy colour options or with individual desired motif
Removable, washable cover

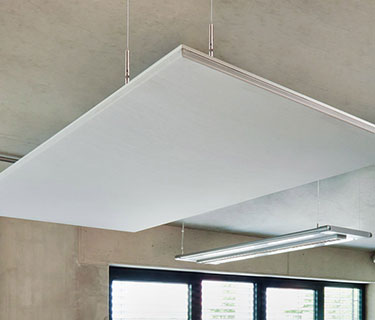

Rectangular wall / ceiling sail with fabric cover

Product data

Format, surface	Rectangular (200 cm x 100 cm), square (100 cm x 100 cm), circle (Ø 100 cm) aluminium frame, acoustic fabric
Material thickness	3 cm
Material	Core of acoustic foam, cover made from acoustic stretch fabric, frame made from anodised aluminium
Colours	Silver-grey, black, royal blue, design red, white, cream white, yellow, red, anthracite (with fish scale pattern) Or send us your desired motif for individual printing on your acoustic sail. Reverse: White
Fastening options	Wall assembly: Metal eyes for fastening to thee wall ceiling installation: Cable system for hanging from the ceiling
Care instructions	Removable, washable fabric cover

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

Absorption values

The measurements of the degree of absorption were carried out on polyester acoustic foams and determined according to DIN 52212.

Frequency range	Material thicknesses 3 cm
125 Hz	0,11
250 Hz	0,23
500 Hz	0,53
1000 Hz	0,92
2000 Hz	0,90
4000 Hz	0,99

Sound absorber/ sound insulation in the reverberation chamber when calculating the absorption coefficients

Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions such as RWTH University or the Technical University in Aachen. The sound absorption coefficients according to DIN 52212 stated above were calculated in extensive measurements.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 60 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

Use of high quality acoustic foams from Germany
Precision manufacturing on the latest CNC cutting machines and systems
Standard solutions or individual small and series manufacturing of noise insulation
Advice, planning, production and brokering of assembly partners

An aixFOAM employee manufactures sound absorbers for sound insulation.

Brand qualityt

from the manufacturer
"Made in Germany"

Production

for you, individually
in a few days

Experience

for 60 years
soundproofing experts

Award

ISO 9001:2015 certified

Areas of application

Exhibition construction

The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

„Our wall and ceiling sails are an excellent and stylish possibility for reducing echoes because they fit harmoniously into the space. The sails ensure a pleasant room acoustics in offices, halls, foyers, lecture theatres and conference rooms in particular. The acoustic fabric cover is removable and washable, so that the sails can also be used in areas with high dust levels.“
