Sound absorber with modern trapezoid profile Reduce noise with style #SH005

Sound absorber with modern trapezoid profile

Reduce noise with style #SH005

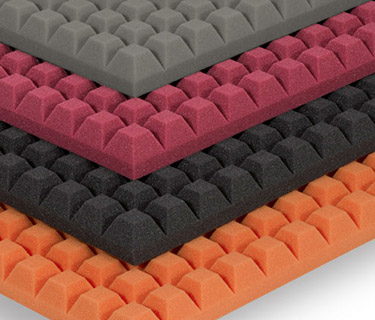

Highly effective acoustic absorber with surface in a trapezoid structure

  • Rectangular panel with trapezoid profile
  • Format 100 x 50 cm in various material thicknesses
  • Colour in anthracite, steel grey, raspberry red, orange
  • Flexible uses, e.g. for sound insulation in HiFi rooms, sound studios, rehearsal rooms, offices

In 6 simple steps to your perfect acoustics:

anthracite steel grey raspberry red orange
3,5 cm 4,5 cm 6,5 cm
Without mounting aid Self-adhesive coating Mounting / hanging cassette without accessories Mounting / suspension cassette including vibration dowels Mounting / suspension cassette with cable system Basic Mounting / suspension cassette with cable system Style
Without flame protection | Polyether With flame retardant additive FMVSS302 | Polyether With flame retardant additive UL94HF1 | Polyester
4 pack 8 pack

Quantity delivered

Your chosen product is shipped in packs of 1.
Ready configured? Continue here

Your choice:

incl. VAT  excl. Shipping

Sound absorber SH005 – Reduce sound with style

  • Sound absorber with trapezoid structure for effective sound absorption even with small material thicknesses
  • Stylish trapezoid surface disperses sound for pleasant, natural room acoustics
  • Bevelled edges facilitate closed installation bonds without shadow joints
Sound absorber with trapezoid surface SH005

Product data

Format, surface
Rectangular panel (100 cm x 50 cm), trapezoid profile surface
Material thicknesses
3.5 cm (2.0 cm base/ 1.5 cm trapezoid), 4.5 cm (2 cm base/ 2.5 cm trapezoid), 6.5 cm (3 cm base/ 3.5 cm trapezoid)
Material
Open-cell PUR acoustic foam
Colours
anthracite, steel grey, raspberry red, orange
Fire classes
Without, UL 94 HF 1, FMVSS 302 (DIN 75200), FAR 25.853, DIN 4102 B2 (only with aixFOAM self-adhesive kit), DIN 4102 B1 upon request (see article SH005 MH), fire class depends on colour selected

More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article.

Fastening options
Without, self-adhesive kit, assembly/ hanging cassette without accessories, assembly / hanging cassette with vibration anchors, assembly / hanging cassette with suspension system Basic or suspension system Style
Assembly recommendation
Laying with or without shadow joint possible

More information about this is available in our relevant aixFOAM knowledge article about the subject "What is a shadow joint?".

Temperatureresistance
- 40 °C to + 100 °C
UV-resistance
UV protection against yellowing thanks to UV blocker additive

For further information, please refer to our matching aixFOAM knowledge article (German) on the topic of "Light ageing - UV yellowing protection".

Harmful substance information
Mineral fibre free, CFC-free
Tolerance
This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

Absorption values

The measurements of the absorption coefficient were performed on polyester acoustic foams from RWTH Aachen. All values refer to absorbers with a size of 100 cm x 50 cm and were calculated according to DIN 52212.


Frequency
range
3,5cm
Height
3,5 cm
4,5cm
Height
4,5 cm
6,5cm
Height
6,5 cm
125 Hz 0,06 0,08 0,11
250 Hz 0,23 0,29 0,49
500 Hz 0,54 0,62 0,91
1000 Hz 0,80 0,83 0,97
2000 Hz 0,85 0,85 0,92
4000 Hz 0,87 0,85 0,88
Sound absorber/ sound insulation in the reverberation chamber when determining the absorption values
Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions such as RWTH University or the Technical University in Aachen. The sound absorption coefficients according to DIN 52212 stated above were calculated in extensive measurements.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 60 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

  • Use of high quality acoustic foams from Germany
  • Precision manufacturing on the latest CNC cutting machines and systems
  • Standard solutions or individual small and series manufacturing of noise insulation
  • Advice, planning, production and brokering of assembly partners
An aixFOAM employee manufactures sound absorbers for sound insulation.
Brand quality
from the manufacturer
"Made in Germany"
Production
for you, individually
in a few days
Experience
for 60 years
soundproofing experts
Award
ISO 9001:2015 certified
The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

‘The sound absorber SH005 is impressive with its stylish look combined with high absorption coefficients for improving room acoustics. As a result of its attractive shape, it becomes a harmonious instrument for designing space and is frequently used in the living area or sound studio.’

Klaus Kern, customer advisor
