You can also find this sound absorber as a set item in eight attractive colour versions under the following item: Three-colour Acoustic Set Diamond
Fire classes
PUR-E (without flame protection), PUR-E+ (FMVSS302), MH++ (DIN 4102 B2), PUR-E++ (DIN 4102 B2) (only with aixFOAM STICKY)
The fire classes of the aixFOAM absorbers do not only refer to the material, but always include the products including the mounting options offered by us, such as our STICKY self-adhesive kit.
More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article.
Fastening options
Without
STICKY. Makes your aixFOAM self-adhesive.
Care instructions
Easy-care water and dirt-repellent felt surface Cleaning is possible with a clothes brush, hoover or soft cloth. Further details can be found in the knowledge article Care and cleaning of felt surfaces.
Temperatureresistance
- 40 °C to + 100 °C
Harmful substance information
Mineral fibre free
Tolerance
This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.
More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.
Absorption values
The measurements of the absorption coefficient were performed on PUR-ES acoustic foams from RWTH Aachen. All values refer to absorbers with a size of 100 cm x 50 cm and were calculated according to DIN 52212.
Frequency range
Height 2 cm
Height 3 cm
Height 5 cm
Height 8 cm
125 Hz
0,07
0,10
0,17
0,23
250 Hz
0,38
0,50
0,73
0,75
500 Hz
0,68
0,78
0,71
0,73
1000 Hz
0,55
0,63
0,59
0,64
2000 Hz
0,42
0,49
0,57
0,59
4000 Hz
0,48
0,53
0,45
0,70
Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions such as RWTH University or the Technical University in Aachen. The sound absorption coefficients according to DIN 52212 stated above were calculated in extensive measurements.
Profit from sound insulation directly from the manufacturer!
At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 65 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.
Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.
Use of high quality acoustic foams from Germany
Precision manufacturing on the latest CNC cutting machines and systems
Standard solutions or individual small and series manufacturing of noise insulation
Advice, planning, production and brokering of assembly partners
Brand quality
from the manufacturer "Made in Germany"
Production
for you, individually in a few days
Experience
for 65 years soundproofing experts
Award
ISO 9001:2015 certified
Areas of application

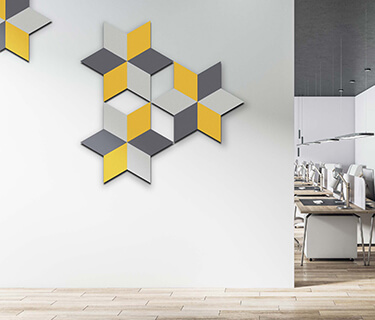

‘Our DIAMOND is a great acoustic element for interior design. Its shape allows for interesting pattern arrangements that achieve a 3D effect by combining several colours. With this broadband absorber, every acoustic measure becomes a customised work of art.’
Matthäus Banduch, customer advisor
