Felt-surface sound absorbers - Circle/ Ellipse
Felt-surface sound absorbers - Circle/ Ellipse
Eye-catcher and sound absorber
Art.nr.: SH006Round
Felt-surface sound absorbers - Circle/ Ellipse
Eye-catcher and sound absorber
Art.nr.: SH006Round

Felt-surface sound absorbers - Circle/ Ellipse

Eye-catcher and sound absorber
Art.nr.: SH006Round
Acoustic absorbers with coloured acoustic felt surface (circle/ ellipse)
  • Available in 20 colours, from trendy-elegant to classic-modern
  • Available in different thicknesses and fire protection classes
  • Varied uses, e.g. for sound insulation in offices, call centres, meeting rooms, living rooms, surgeries, legal offices, schools
In 6 simple steps to your perfect acoustics:

* Required Fields

Sorry, the maximum amount you can order is 10000.

Sorry, the minimum amount you can order is 1.

1 Pack = = 1
Ready configured? Continue here
Your choice:
Please, do not hesitate to contact us.

Phone: +49 2403 / 83830 - 22
Monday - Friday 8 am - 5 pm CET

Email: sales@aixfoam.com
24 hours a day
What's in the box?
You will receive a total of 1 packing unit with the following content:

Felt-surface sound absorbers - Circle/ Ellipse
Art.nr. SH006Round

1 Pack =
= 1
€127.62
incl. 19 % VAT

Design sound absorber SH006Round – An all-round success

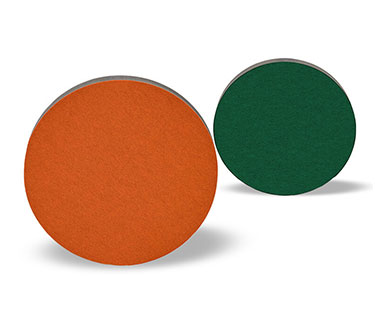

  • Circular and elliptical sound absorbers with elegant felt surface and acoustic foam core
  • Low-maintenance textile surface in 20 colours, from trendy-elegant to classic-modern
  • Variety of uses thanks to the broad absorption spectrum and elegant shape
Stacked sound absorbers with felt surface in various colours

Product data

Format, surface Circle (Ø 50 cm), ellipse (100 cm x 50 cm), acoustic foam core with felt surface
Material thicknesses 3 cm, 5 cm, 8 cm
Material Open-cell PUR acoustic foam with acoustic felt lamination
Colours Acoustic core in anthracite
Felt colours: Marbled sandstone, marbled ivory, marbled light grey, marbled cream white, marbled graphite grey, marbled maroon, marbled amber, marbled fuchsia red, black, ash grey, terra brown, mocha brown, design red, may green, royal blue, sky blue, sunny yellow, marbled blackberry, marbled lavender, marbled forest green
Fire classes Without, FMVSS 302 (DIN 75200), DIN 4102 B2 (only with aixFOAM self-adhesive kit)
More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article (German).
Fastening options Without, self-adhesive kit
Temperature­resistance - 40 °C to + 100 °C
Harmful substance information Mineral fibre free
Tolerance This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

Absorption values

The measurements of the absorption coefficient were performed on polyester acoustic foams from RWTH Aachen. All values refer to absorbers with a size of 100 cm x 50 cm and were calculated according to DIN 52212.


Frequency
range
3cm
Height
3 cm
5cm
Height
5 cm
8cm
Height
8 cm
125 Hz 0,10 0,17 0,23
250 Hz 0,50 0,73 0,75
500 Hz 0,78 0,71 0,73
1000 Hz 0,63 0,59 0,64
2000 Hz 0,49 0,57 0,59
4000 Hz 0,53 0,45 0,70
Sound absorber/ sound insulation in the reverberation chamber when calculating the absorption coefficients
Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions such as RWTH University or the Technical University in Aachen. The sound absorption coefficients according to DIN 52212 stated above were calculated in extensive measurements.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 60 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

  • Use of high quality acoustic foams from Germany
  • Precision manufacturing on the latest CNC cutting machines and systems
  • Standard solutions or individual small and series manufacturing of noise insulation
  • Advice, planning, production and brokering of assembly partners
An aixFOAM employee manufactures sound absorbers for sound insulation.
Brand qualityt
from the manufacturer
"Made in Germany"
Production
for you, individually
in a few days
Experience
for 60 years
soundproofing experts
Award
ISO 9001:2015 certified
The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

„Its elegant shape makes the SH006Round sound absorber a genuine favourite among our customers. They value it as sound insulation as well as an element of their room design. These absorbers are characterised by the large range of colours, the practical self-adhesive kit and the high level of sound absorption, even with small material thicknesses.“

Murielle Pirotte, customer advisor
We are here for you!

Do you need help or do you have any questions about the product?

Use our help area with brief answers to the most frequently asked questions from our customers.

Of course we are happy to help you with advice, free of charge.

+49 2403 / 83830 - 22
Monday to Friday
08:00 hours to 17:00 hours

sales@aixfoam.com
Daily from 00.00 – 24.00 hours

Impressions?

This is where you can find some application pictures of our sound absorber SH006Round.
