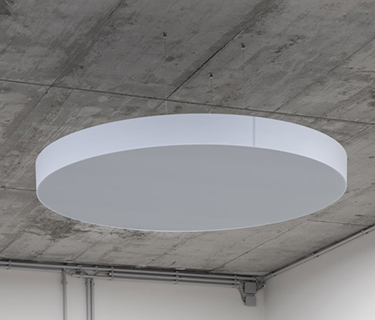

- Circular sound absorber made of thermoset acoustic foam
- Legally protected product with highly effective soundproofing effect
- For mounting on walls and ceilings or as a suspended ceiling panel
- Lightweight and extraordinarily heat- and flame-resistant according to fire protection class DIN 4102 B1
Product data
Format, surface
Circle (Ø 60 cm, 80 cm, 100 cm), flat surface
Material thicknesses
8 cm
Material
Thermoset acoustic foam
Colours
White-grey
Fire classes
DIN 4102 B1
More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article.
Fastening options
Embedded magnetic eyelets for attachment to wall or ceiling suspension PLATE or extension with the magnetic hook HOOK for attachment to the HANGER suspension system (Suspended installation from the ceiling).
Thermal conductivity
0,032 – 0,038 W/mK
UV-resistance
Maximum UV resistance, does not yellow
Harmful substance information
Certified according to Eco-Tex Standard 100 as not harmful to health, mineral-fibre free, CFC-free, propellant-free
Property right
Protected product, property right no. 402013200146-0003, 402014100217-0008, 002527127-0008
Tolerance
This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.
In the production (foaming) of this acoustic material different sized pores (voids) can arise. Voids are typical for the material, do not represent a quality defect and do not affect the acoustic properties of the absorber.
More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.
For those who expect more - aixFOAM Premium sound absorbers
Our sound absorbers made of thermoset acoustic foam are the ideal solution for rooms with particularly high soundproofing and fire protection requirements. They owe their unsurpassed acoustic properties to the extremely fine, open pore structure that almost completely absorbs sound. They are flame retardant without the addition of flame retardants and thus meet many regulations to ensure fire safety in public buildings.
- Maximum sound absorption
- Flame retardant according to DIN 4102 B1
- Form-stable and colour-fast – no yellowing!
- Very low weight
- Antistatic, fibre-free and elastic
Absorption values
The measurements of the sound absorption coefficient were determined according to DIN EN ISO 354 (reverberation room) and refer to an absorber area of 100 cm x 50 cm.
Sound absorption coefficients for MAGNETIC Drop in white-grey
Frequency
range |
Height
12 cm |
| 125 Hz |
0,22 |
250 Hz |
0,98 |
| 500 Hz |
1,03 |
| 1000 Hz |
1,01 |
| 2000 Hz |
1,07 |
| 4000 Hz |
1,05 |
Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions. The sound absorption coefficients according to DIN EN ISO 354 (reverberation chamber) stated above were calculated in extensive measurements.
