Highly effective acoustic ceiling elements for standard grid ceilings with sound insulation and Fire Protection Plus
  • Extra fine-pored thermoset acoustic foam for maximum sound absorption
  • Extraordinary heat and flame resistance conforming to fire protection class DIN 4102 B1
  • With a smooth surface or with a trapezoidal profile
  • Square shape, side length 62 cm, various material thicknesses can be selected
  • Available in white grey and titanium grey
  • Suitable for new planning or the replacement of suspended grid ceilings for a wide range of applications, e.g. for soundproofing offices, conference rooms, medical practices and for sound insulation in commercial spaces
In 4 simple steps to your perfect acoustics:

* Required Fields

Sorry, the maximum amount you can order is 10000.

Sorry, the minimum amount you can order is 1.

1 Pack = = 1
Ready configured? Continue here
Your choice:
Please, do not hesitate to contact us.

Phone: +49 2403 / 83830 - 22
Monday - Friday 8 am - 5 pm CET

Email: sales@aixfoam.com
24 hours a day
What's in the box?
You will receive a total of 1 packing unit with the following content:

Sound absorbers for suspended ceilings
Art.nr. SH00XA MH

1 Pack =
= 1

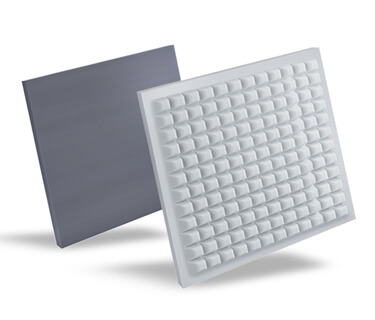

Sound absorber SH001X MH – Acoustic inserts for grid ceilings

  • Sound absorbers, suitable for new planning or replacing standardised grid ceilings
  • Highly effective sound absorption even with small material thickness
  • Low weight and extraordinary heat and flame resistance according to fire protection class DIN 4102 B1
Stacked sound absorbers for grid ceilings with higher fire protection class

Product data

Format, surface Square panel (62 cm x 62 cm), plane or trapezoid profile surface
Material thicknesses Smooth: 5 cm, 8 cm, 9.6 cm
Trapezium: 5.5 cm (3.5 cm base/ 2 cm trapezoid)
Material Thermoset acoustic foam
Colours White-grey, titanium grey
Fire classes DIN 4102 B1
More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article (German).
Fastening options Without, install by inserting into a standard grid ceiling construction
Temperature­resistance - 200 °C to + 200 °C
Thermal conductivity 0,032 – 0,038 W/mK
UV-resistance Maximum UV resistance, does not yellow
Harmful substance
information
Certified according to Eco-Tex Standard 100 as not harmful to health, mineral-fibre free, CFC-free, propellant-free
Tolerance This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.
In the production (foaming) of this acoustic material different sized pores (voids) can arise. Voids are typical for the material, do not represent a quality defect and do not affect the acoustic properties of the absorber.

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

For those who expect more - aixFOAM Premium sound absorbers

Our sound absorbers made of thermoset acoustic foam are the ideal solution for rooms with particularly high soundproofing and fire protection requirements. They owe their unsurpassed acoustic properties to the extremely fine, open pore structure that almost completely absorbs sound. They are flame retardant without the addition of flame retardants and thus meet many regulations to ensure fire safety in public buildings.

aixFOAM Premium sound absorbers
  • Maximum sound absorption
  • Flame retardant according to DIN 4102 B1
  • Form-stable and colour-fast – no yellowing!
  • Very low weight
  • Antistatic, fibre-free and elastic

Absorption values

The measurements of the sound absorption coefficient were determined according to DIN EN ISO 354 (reverberation room) and refer to an absorber area of 62cm x 62 cm.

Sound absorption coefficients for SH001X MH in white-grey


Frequency
range
5cm
Height
5 cm/5.5 cm
8cm
Height
8 cm
10cm
Height
9.6 cm
125 Hz 0,12 0,16 0,19
250 Hz 0,49 0,82 0,91
500 Hz 0,90 1,00 1,02
1000 Hz 1,00 0,99 1,02
2000 Hz 1,03 1,04 1,08
4000 Hz 1,00 1,06 1,07

Sound absorption coefficients for SH001X MH in dark-grey


Frequency
range
5cm
Height
5 cm/5.5 cm
8cm
Height
8 cm
10cm
Height
9.6 cm
125 Hz 0,18 0,26 0,30
250 Hz 0,47 0,71 0,77
500 Hz 0,75 0,93 0,97
1000 Hz 0,87 0,97 1,03
2000 Hz 0,95 1,01 1,07
4000 Hz 0,98 1,02 1,08
Sound absorber/ sound insulation in the reverberation chamber when calculating the absorption coefficients
Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions such as RWTH University or the Technical University in Aachen. The sound absorption coefficients according to DIN 52212 stated above were calculated in extensive measurements.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 60 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

  • Use of high quality acoustic foams from Germany
  • Precision manufacturing on the latest CNC cutting machines and systems
  • Standard solutions or individual small and series manufacturing of noise insulation
  • Advice, planning, production and brokering of assembly partners
An aixFOAM employee manufactures sound absorbers for sound insulation.
Brand qualityt
from the manufacturer
"Made in Germany"
Production
for you, individually
in a few days
Experience
for 60 years
soundproofing experts
Award
ISO 9001:2015 certified
The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

„Our insert plates have almost unsurpassed sound absorption properties. They achieve high absorption rates and can be easily installed in suspended ceilings or grid ceilings. The effectiveness of these absorbers in combination with the freely selectable surface profiles make them very popular with our customers in meeting rooms, medical practices, offices, classrooms or event rooms.“
