Design acoustics absorber jigsaw Every piece fits #SH006Puzzle

Design acoustics absorber jigsaw

Every piece fits #SH006Puzzle

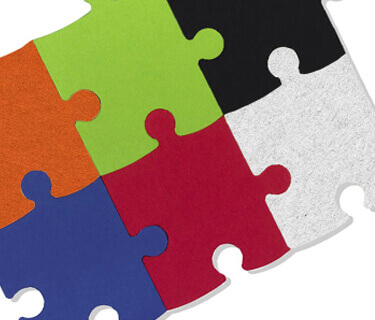

Sound absorbers as puzzle pieces in different colours

Contour cut jigsaw pieces with acoustic felt textile surface
jigsaw size 56 x 50.5 cm
available in 20 modern colours
suitable for different applications such as sound insulation in offices, call centres, living rooms, children's rooms

In 6 simple steps to your perfect acoustics:

1. Felt colour

Our aixFOAM felt colours:

black ash grey marbled graphite grey marbled light grey marbled maroon terra brown mocha brown marbled cream white marbled ivory marbled sandstone marbled blackberry marbled lavender design red marbled fuchsia red marbled amber sunny yellow marbled forest green may green sky blue royal blue

2. Material thickness

Different material thicknesses, profiles and types affect the efficiency of certain frequency ranges. The fact is that the thicker the material, the better the absorption effect, especially for low frequencies. On account of the high quality of the specifically developed acoustic core an efficient sound absorption is achieved even with low material thicknesses.

Depending on the application area you can adjust the absorption efficiency to your personal requirements by combining different material thicknesses and acoustic elements. Our team of experienced experts will be glad to support you with professional advice and planning.

3 cm 5 cm

3. Mounting options

Without mounting aid

You would like to attach or glue the acoustic elements yourself? Then select "None". Please note that a glue-free adhesive is used when gluing. However, we always recommend our self-adhesive equipment for gluing.

Self-adhesive coating

The back of the absorber is coated by machine in the factory with a solvent-free adhesive system and covered with lining paper. This lining paper must be removed before bonding.

Self-adhesive coating

The back of the absorber is coated by machine in the factory with a solvent-free adhesive system and covered with lining paper. This lining paper must be removed before bonding.

Mounting / hanging cassette without accessories

You will receive your individual sound absorber framed by a high-quality assembly/suspension cassette made of anodised aluminium. The aixFOAM cassette can be used for horizontal, vertical or floating assembly.

Mounting / suspension cassette including vibration dowels

Montage-/Hängekassette inklusive Schwingungsdübeln

You will receive your individual sound absorber framed by a high-quality assembly/suspension cassette made of anodised aluminium. aixFOAM oscillating plugs serve the professional spaced-erection of the aixFOAM flat-mounted- or pendant assembly cassettes. The spacing prevents the transmission of acoustic vibrations to the substrate (masonry). In addition, the efficiency of all aixFOAM absorbers in the lower range frequencies is enhanced in combination with the aixFOAM flat-mounted- or pendant assembly cassettes.

Mounting / suspension cassette with cable system Basic

Montage-/Hängekassette mit Seilsystem Basic

The aixFOAM pendant system basic serves the suspension of aixFOAM pendant assembly cassettes. By means of this pendant system, you have the possibility of suspending the aixFOAM sound absorber of your choice, in combination with the aixFOAM flat-mounted or pendant assembly cassettes, either horizontal suspended from a ceiling, or vertically from a side walling. The suspension cords have a maximum length of around 1000 mm, and can be individually shortened upon erection, so that the aixFOAM sound absorber can be optimally placed.

Mounting / suspension cassette with cable system Style

Montage-/Hängekassette mit Seilsystem Style

The aixFOAM pendant system style serves the suspension of aixFOAM pendant assembly cassettes. By means of this pendant system, you have the possibility of suspending the aixFOAM sound absorber of your choice, in combination with the aixFOAM flat-mounted or pendant assembly cassettes, either horizontal suspended from a ceiling, or vertically from a side walling. The suspension cords have a maximum length of around 1000 mm, and can be individually shortened upon erection, so that the aixFOAM sound absorber can be optimally placed.

Without mounting aid Self-adhesive coating

4. Flame protection

Without flame protection | Polyether

Acoustic absorbers without supplemental fire protection are usually used for building loudspeakers or in facilities where no fire protection measures are required. As manufacturer of high-quality sound insulation elements we offer acoustic solutions with different fire protection classifications, up to flame-resistant elements according to DIN4102 B1. We always recommend our customers to contact an official expert, an architect or the construction authorities for the correct information on the respective requirements.

With flame retardant additive FMVSS302 | Polyether

Acoustic foams of this classifications are often used in the automotive industry and for engineering applications. The flame propagation speed is reduced by adding fire retardants (4inches/minute). The appropriate test standard is available for download in German.

Without flame protection | Polyester

With flame retardant additive DIN4102 B2 | Polyether

This classification stands for normal flammability. However, materials classified as DIN 4102 B2 generally burn slowly. The appropriate test standard is available for download in German.

With flame retardant additive UL94HF1 | Polyester

This material is self-extinguishing and do not drip. The appropriate test standard is available for download in German.

With flame retardant additive UL94HF1 + FAR 25.853 | Polyester

FAR 25.853 vertical burn test was carried out by the Lufthansa laboratories in Hamburg and documented under the test certificate of the Lufthansa Technik AG, official approval number 6040/2005. This is certificate, officially recognized by the Luftfahrtbundesamt, also known as Flammability Material Test Certificate FAR25.853. During this procedure, a sample is vertically subject to an 800C° Bunsen burner flame for duration of 12 seconds. The flame has to extinguish itself within 15 seconds. Also it must not spread more than 8 inches (203mm). The appropriate test standard is available for download in German.

We recommend clarifying your required fire rating with the local authorities.

Width flame protection DIN4102 B1

Probably one of the most significant fire protection standards in the construction sector is the acoustic insulation foam DIN4102 B1. This is the highest classification which can be achieved for acoustic foam without the addition of non-mineral additives. These foams are self-extinguishing. Our thermoset acoustic elements of our architect or engineer product lines meet all the B1 requirements.
The appropriate test standard is available for download in German.

Without flame protection | Polyether With flame retardant additive FMVSS302 | Polyether With flame retardant additive DIN4102 B2 | Polyether
