UFO Full speed ahead for pleasant room acoustics

UFO

Full speed ahead for pleasant room acoustics

Acoustic sail for wall or ceiling installation

  • In 9 attractive colours or for printing with your own motif
  • Removable cover made from acoustic stretch fabric
  • Effective acoustic foam core
  • Suitable for acoustic applications in, for example, offices, call centres, meeting and conference rooms, foyers, living rooms, etc.

In 2 simple steps to your perfect acoustics:

white cream white silver gray anthracite (with fish scale pattern) black red design red royal blue yellow Individual print
Ceiling Wall
Ready configured? Continue here

Your choice:

We will send you a binding quote asap.

Coloured ceiling sail / wall sail UFO creates a pleasant ambience

  • Round ceiling and wall sails for horizontally suspended or handing installation
  • In 9 trendy colour options or with individual desired motif
  • Removable, washable cover
Rectangular wall / ceiling sail with fabric cover

Product data

Format, surface
Circle (Ø 100 cm) aluminium frame, acoustic fabric
Material thicknesses
3 cm
Material
Core of acoustic foam, cover made from acoustic stretch fabric, frame made from anodised aluminium Aluminium
Colours
Silver-grey, black, anthracite (with fish scale pattern), royal blue, design red, white, cream white, yellow, red

Or send us your desired motif for individual printing on your acoustic sail.

Reverse: White

Fastening options

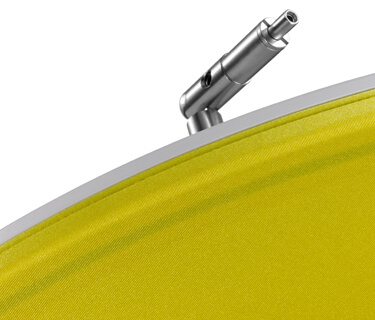

Wall assembly: Metal eyes for fastening to thee wall

ceiling installation: Cable system for hanging from the ceiling

Care instructions
Removable, washable fabric cover

Care instructions

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

Absorption values

The measurements of the degree of absorption were carried out on PUR-ES acoustic foams and determined according to DIN 52212.


Frequency
range
3cm
Height
3 cm
125 Hz 0,11
250 Hz 0,23
500 Hz 0,53
1000 Hz 0,92
2000 Hz 0,90
4000 Hz 0,99
Sound absorber/ sound insulation in the reverberation chamber when determining the absorption values
Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions such as RWTH University or the Technical University in Aachen. The sound absorption coefficients according to DIN 52212 stated above were calculated in extensive measurements.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 65 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

  • Use of high quality acoustic foams from Germany
  • Precision manufacturing on the latest CNC cutting machines and systems
  • Standard solutions or individual small and series manufacturing of noise insulation
  • Advice, planning, production and brokering of assembly partners
An aixFOAM employee manufactures sound absorbers for sound insulation.
Brand quality
from the manufacturer
"Made in Germany"
Production
for you, individually
in a few days
Experience
for 65 years
soundproofing experts
Award
ISO 9001:2015 certified
The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

‘Our wall and ceiling sails are an excellent and stylish possibility for reducing echoes because they fit harmoniously into the space. The sails ensure a pleasant room acoustics in offices, halls, foyers, lecture theatres and conference rooms in particular. The acoustic fabric cover is removable and washable, so that the sails can also be used in areas with high dust levels.’

Agnes Hermanns, customer advisor

We are here for you!

Do you need help or do you have any questions about the product?

Use our help area with brief answers to the most frequently asked questions from our customers.

Of course we are happy to help you with advice, free of charge.

+49 2403 / 83830 - 22
Monday to Friday
08:00 o'clock to 17:00 o'clock

sales@aixfoam.com
Daily from 00.00 – 24.00 o'clock

Impressions?

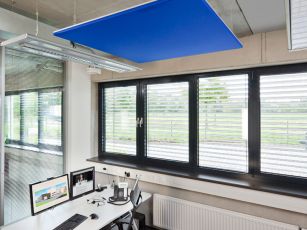

This is where you can find some application pictures of our Ceiling sail / wall sail UFO.
