Acoustic Ceiling Set Square

Good acoustics in a set #SquareSet

Self-adhesive acoustic ceiling set for room sizes from 10 m² with sound insulation and Fire Protection Plus
  • Fully calculated sets for various room sizes
  • Extra fine-pored thermoset acoustic foam for maximum sound absorption
  • Very light, flame-retardant square elements according to DIN 4102 B1
  • Available in white grey, titanium grey and white grey/titanium grey
  • Fast and easy mounting
  • Ideal for e.g. schools and nurseries, retail and wholesale areas, restaurants, cafés, bars and gastronomic facilities, public facilities/ buildings, offices, conference rooms, call centres

In 3 simple steps to your perfect acoustics:

Quantity delivered

Your chosen product is shipped in packs of 1.
Ready configured? Continue here

Your choice:

incl. VAT  excl. Shipping

Acoustic Ceiling Set Square - Good acoustics in a practical set.

  • Square sound absorber made of Duromer acoustic foam with fire protection class DIN 4102 B1
  • Simple selection: Just select room size and colour
  • Low weight and extraordinarily high sound absorption
  • Adhesive, ideal as sound insulation on the ceiling
Square sound absorber with flat surface

Product data

Content
    • 8 x 60 cm x 60 cm x 5 cm (height)
    • 2 x 120 cm x 120 cm x 9,6 cm (height)

    • 8 x 60 cm x 60 cm x 5 cm (height)
    • 2 x 120 cm x 120 cm x 9,6 cm (height)

    • 8 x 60 cm x 60 cm x 5 cm (height), white grey
    • 2 x 120 cm x 120 cm x 9,6 cm (height), Titanium grey

    • 8 x 60 cm x 60 cm x 5 cm (height)
    • 8 x 60 cm x 60 cm x 8 cm (height)
    • 2 x 120 cm x 120 cm x 8 cm (height)
    • 2 x 120 cm x 120 cm x 9,6 cm (height)

    • 8 x 60 cm x 60 cm x 5 cm (height)
    • 8 x 60 cm x 60 cm x 8 cm (height)
    • 2 x 120 cm x 120 cm x 8 cm (height)
    • 2 x 120 cm x 120 cm x 9,6 cm (height)

    • 8 x 60 cm x 60 cm x 5 cm (height), white grey
    • 8 x 60 cm x 60 cm x 8 cm (height), Titanium grey
    • 2 x 120 cm x 120 cm x 8 cm (height), white grey
    • 2 x 120 cm x 120 cm x 9,6 cm (height), Titanium grey

    • 8 x 60 cm x 60 cm x 5 cm (height)
    • 4 x 60 cm x 60 cm x 8 cm (height)
    • 4 x 60 cm x 60 cm x 9,6 cm (height)
    • 2 x 120 cm x 120 cm x 8 cm (height)
    • 4 x 120 cm x 120 cm x 9,6 cm (height)

    • 8 x 60 cm x 60 cm x 5 cm (height)
    • 4 x 60 cm x 60 cm x 8 cm (height)
    • 4 x 60 cm x 60 cm x 9,6 cm (height)
    • 2 x 120 cm x 120 cm x 8 cm (height)
    • 4 x 120 cm x 120 cm x 9,6 cm (height)

    • 8 x 60 cm x 60 cm x 5 cm (height), white grey
    • 4 x 60 cm x 60 cm x 8 cm (height), Titanium grey
    • 4 x 60 cm x 60 cm x 9,6 cm (height), Titanium grey
    • 2 x 120 cm x 120 cm x 8 cm (height), white grey
    • 2 x 120 cm x 120 cm x 9,6 cm (height), white grey
    • 2 x 120 cm x 120 cm x 9,6 cm (height), Titanium grey

    • 12 x 60 cm x 60 cm x 5 cm (height)
    • 8 x 60 cm x 60 cm x 8 cm (height)
    • 8 x 60 cm x 60 cm x 9,6 cm (height)
    • 1 x 120 cm x 120 cm x 5 cm (height)
    • 2 x 120 cm x 120 cm x 8 cm (height)
    • 4 x 120 cm x 120 cm x 9,6 cm (height)

    • 12 x 60 cm x 60 cm x 5 cm (height)
    • 8 x 60 cm x 60 cm x 8 cm (height)
    • 8 x 60 cm x 60 cm x 9,6 cm (height)
    • 1 x 120 cm x 120 cm x 5 cm (height)
    • 2 x 120 cm x 120 cm x 8 cm (height)
    • 4 x 120 cm x 120 cm x 9,6 cm (height)

    • 8 x 60 cm x 60 cm x 5 cm (height), white grey
    • 4 x 60 cm x 60 cm x 5 cm (height), Titanium grey
    • 4 x 60 cm x 60 cm x 8 cm (height), white grey
    • 4 x 60 cm x 60 cm x 8 cm (height), Titanium grey
    • 4 x 60 cm x 60 cm x 9,6 cm (height), white grey
    • 4 x 60 cm x 60 cm x 9,6 cm (height), Titanium grey
    • 1 x 120 cm x 120 cm x 5 cm (height), Titanium grey
    • 2 x 120 cm x 120 cm x 8 cm (height), white grey
    • 2 x 120 cm x 120 cm x 9,6 cm (height), white grey
    • 2 x 120 cm x 120 cm x 9,6 cm (height), Titanium grey

    • 16 x 60 cm x 60 cm x 5 cm (height)
    • 8 x 60 cm x 60 cm x 8 cm (height)
    • 8 x 60 cm x 60 cm x 9,6 cm (height)
    • 2 x 120 cm x 120 cm x 5 cm (height)
    • 2 x 120 cm x 120 cm x 8 cm (height)
    • 4 x 120 cm x 120 cm x 9,6 cm (height)

    • 16 x 60 cm x 60 cm x 5 cm (height)
    • 8 x 60 cm x 60 cm x 8 cm (height)
    • 8 x 60 cm x 60 cm x 9,6 cm (height)
    • 2 x 120 cm x 120 cm x 5 cm (height)
    • 2 x 120 cm x 120 cm x 8 cm (height)
    • 4 x 120 cm x 120 cm x 9,6 cm (height)

    • 8 x 60 cm x 60 cm x 5 cm (height), white grey
    • 8 x 60 cm x 60 cm x 5 cm (height), Titanium grey
    • 4 x 60 cm x 60 cm x 8 cm (height), white grey
    • 4 x 60 cm x 60 cm x 8 cm (height), Titanium grey
    • 4 x 60 cm x 60 cm x 9,6 cm (height), white grey
    • 4 x 60 cm x 60 cm x 9,6 cm (height), Titanium grey
    • 2 x 120 cm x 120 cm x 5 cm (height), Titanium grey
    • 2 x 120 cm x 120 cm x 8 cm (height), white grey
    • 2 x 120 cm x 120 cm x 9,6 cm (height), white grey
    • 2 x 120 cm x 120 cm x 9,6 cm (height), Titanium grey

    • 16 x 60 cm x 60 cm x 5 cm (height)
    • 16 x 60 cm x 60 cm x 8 cm (height)
    • 8 x 60 cm x 60 cm x 9,6 cm (height)
    • 4 x 120 cm x 120 cm x 5 cm (height)
    • 2 x 120 cm x 120 cm x 8 cm (height)
    • 4 x 120 cm x 120 cm x 9,6 cm (height)

    • 16 x 60 cm x 60 cm x 5 cm (height)
    • 16 x 60 cm x 60 cm x 8 cm (height)
    • 8 x 60 cm x 60 cm x 9,6 cm (height)
    • 4 x 120 cm x 120 cm x 5 cm (height)
    • 2 x 120 cm x 120 cm x 8 cm (height)
    • 4 x 120 cm x 120 cm x 9,6 cm (height)

    • 8 x 60 cm x 60 cm x 5 cm (height), white grey
    • 8 x 60 cm x 60 cm x 5 cm (height), Titanium grey
    • 4 x 60 cm x 60 cm x 8 cm (height), white grey
    • 4 x 60 cm x 60 cm x 8 cm (height), Titanium grey
    • 4 x 60 cm x 60 cm x 9,6 cm (height), white grey
    • 4 x 60 cm x 60 cm x 9,6 cm (height), Titanium grey
    • 2 x 120 cm x 120 cm x 5 cm (height), white grey
    • 2 x 120 cm x 120 cm x 5 cm (height), Titanium grey
    • 2 x 120 cm x 120 cm x 8 cm (height), white grey
    • 2 x 120 cm x 120 cm x 9,6 cm (height), white grey
    • 2 x 120 cm x 120 cm x 9,6 cm (height), Titanium grey

    • 16 x 60 cm x 60 cm x 5 cm (height)
    • 16 x 60 cm x 60 cm x 8 cm (height)
    • 16 x 60 cm x 60 cm x 9,6 cm (height)
    • 4 x 120 cm x 120 cm x 5 cm (height)
    • 4 x 120 cm x 120 cm x 8 cm (height)
    • 4 x 120 cm x 120 cm x 9,6 cm (height)

    • 16 x 60 cm x 60 cm x 5 cm (height)
    • 16 x 60 cm x 60 cm x 8 cm (height)
    • 16 x 60 cm x 60 cm x 9,6 cm (height)
    • 4 x 120 cm x 120 cm x 5 cm (height)
    • 4 x 120 cm x 120 cm x 8 cm (height)
    • 4 x 120 cm x 120 cm x 9,6 cm (height)

    • 8 x 60 cm x 60 cm x 5 cm (height), white grey
    • 8 x 60 cm x 60 cm x 5 cm (height), Titanium grey
    • 8 x 60 cm x 60 cm x 8 cm (height), white grey
    • 8 x 60 cm x 60 cm x 8 cm (height), Titanium grey
    • 8 x 60 cm x 60 cm x 9,6 cm (height), white grey
    • 8 x 60 cm x 60 cm x 9,6 cm (height), Titanium grey
    • 2 x 120 cm x 120 cm x 5 cm (height), white grey
    • 2 x 120 cm x 120 cm x 5 cm (height), Titanium grey
    • 2 x 120 cm x 120 cm x 8 cm (height), white grey
    • 2 x 120 cm x 120 cm x 8 cm (height), Titanium grey
    • 2 x 120 cm x 120 cm x 9,6 cm (height), white grey
    • 2 x 120 cm x 120 cm x 9,6 cm (height), Titanium grey

Material
Thermoset acoustic foam
Colour
White-grey, titanium grey
Fire classes
DIN 4102 B1

More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article (German).

Fastening options
Self-adhesive equipment
Temperatureresistance
- 200 °C to + 200 °C
Thermal conductivity
0,032 – 0,038 W/mK
UV-resistance
Highly UV-resistant, does not yellow
Harmful substance information
Maximum UV resistance, does not yellow , Mineral fibre free, CFC-free, propellant-free
Property right
Protected product, property right no. 402013200146-0003, 402014100217-0008, 002527127-0008
Tolerance
This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.

In the production (foaming) of this acoustic material different sized pores (voids) can arise. Voids are typical for the material, do not represent a quality defect and do not affect the acoustic properties of the absorber.

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

For those who expect more - aixFOAM Premium sound absorbers

Our sound absorbers made of thermoset acoustic foam are the ideal solution for rooms with particularly high soundproofing and fire protection requirements. They owe their unsurpassed acoustic properties to the extremely fine, open pore structure that almost completely absorbs sound. They are flame retardant without the addition of flame retardants and thus meet many regulations to ensure fire safety in public buildings.

Stacked sound absorbers with flat surface and increased fire protection class
  • Maximum sound absorption
  • Flame retardant according to DIN 4102 B1
  • Form-stable and colour-fast – no yellowing!
  • Very low weight
  • Antistatic, fibre-free and elastic

Absorption values

The measurements of the sound absorption coefficient were determined according to DIN EN ISO 354 (reverberation room) and refer to an absorber area of 100 cm x 50 cm.

Sound absorption coefficients for SH001 MH Square in white-grey


Frequency
range
3cm
Height
5 cm
5cm
Height
8 cm
8cm
Height
9,6 cm
125 Hz 0,22 0,23 0,32
250 Hz 0,53 0,77 0,87
500 Hz 0,80 1,00 1,01
1000 Hz 0,91 1,11 1,07
2000 Hz 1,07 1,21 1,20
4000 Hz 1,05 1,19 1,20

Sound absorption coefficients for SH001 MH Square in titanium-grey


Frequency
range
3cm
Height
5 cm
5cm
Height
8 cm
8cm
Height
9,6 cm
125 Hz 0,22 0,31 0,36
250 Hz 0,65 0,71 0,80
500 Hz 0,81 0,93 1,01
1000 Hz 0,90 0,97 1,03
2000 Hz 1,00 1,01 1,05
4000 Hz 1,01 1,02 1,04
Sound absorber/ sound insulation in the reverberation chamber when determining the absorption values
Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions. The sound absorption coefficients according to DIN EN ISO 354 (reverberation chamber) stated above were calculated in extensive measurements.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 60 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

  • Use of high quality acoustic foams from Germany
  • Precision manufacturing on the latest CNC cutting machines and systems
  • Standard solutions or individual small and series manufacturing of noise insulation
  • Advice, planning, production and brokering of assembly partners
An aixFOAM employee manufactures sound absorbers for sound insulation.
Brand quality
from the manufacturer
"Made in Germany"
Production
for you, individually
in a few days
Experience
for 60 years
soundproofing experts
Award
ISO 9001:2015 certified
The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

‘The practical sets with our self-adhesive squares are particularly popular on ceilings in nurseries, schools or the gastronomy branch. Easy to install, they provide pleasant room acoustics without disturbing noise.’

Thomas Stollenwerk, customer advisor

We are here for you!

Do you need help or do you have any questions about the product?

Use our help area with brief answers to the most frequently asked questions from our customers.

Of course we are happy to help you with advice, free of charge.

+49 2403 / 83830 - 22
Monday to Friday
08:00 o'clock to 17:00 o'clock

sales@aixfoam.com
Daily from 00.00 – 24.00 o'clock

Impressions?

This is where you can find some pictures of our Square Sets in use.

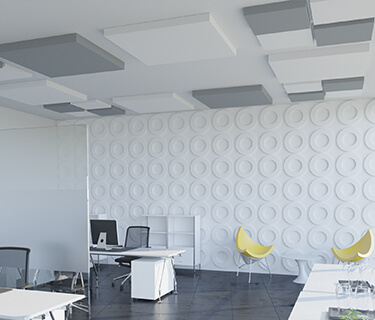

Sound insulation with the sound absorber SquareSet
