MAGNETIC Drops Set
Attractive calm in a practical set
MAGNETIC Drops Set
Attractive calm in a practical set
Magnetic acoustic set for room sizes from 10 metres with sound insulation and fire protection plus
Pre-calculated sets for various room sizes
Extra fine-pored Duromer acoustic absorbers for maximum sound absorption effect
Very light and flame-retardant sound absorbers in accordance with DIN 4102 B1 / C-s2, d0 according to DIN EN 13501
Available in white and grey
Magnetic system for quick and easy installation directly on the wall/ceiling or on the hanging system
Ideal for e.g. schools and nurseries, retail and wholesale areas, restaurants, cafés, bars and catering establishments, public facilities/buildings, offices, conference rooms, call centres
MAGNETIC Drops Set – Attractive calm in a practical set.
Circular sound absorber made of thermoset acoustic foam with fire classes DIN 4102 B1 / C-s2, d0 according to DIN EN 13501
With magnet system for classic wall/ceiling mounting or as acoustic sails on the suspension system
Lightweight and extraordinarily high sound absorption
Product data
Contents
3 x Ø 80 cm x 8 cm (height)
4 x Ø 60 cm x 8 cm (height)
2 x Ø 100 cm x 8 cm (height)
6 x Ø 80 cm x 8 cm (height)
4 x Ø 60 cm x 8 cm (height)
4 x Ø 100 cm x 8 cm (height)
6 x Ø 80 cm x 8 cm (height)
4 x Ø 60 cm x 8 cm (height)
8 x Ø 100 cm x 8 cm (height)
6 x Ø 80 cm x 8 cm (height)
4 x Ø 60 cm x 8 cm (height)
8 x Ø 100 cm x 8 cm (height)
9 x Ø 80 cm x 8 cm (height)
4 x Ø 60 cm x 8 cm (height)
10 x Ø 100 cm x 8 cm (height)
12 x Ø 80 cm x 8 cm (height)
4 x Ø 60 cm x 8 cm (height)
8 x Ø 100 cm x 8 cm (height)
12 x Ø 80 cm x 8 cm (height)
12 x Ø 60 cm x 8 cm (height)
Material
Thermoset acoustic foam
Colours
White-grey
Fire classes
DIN 4102 B1, C-s2, d0 according to DIN EN 13501
More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article.
Fastening options
Embedded magnetic eyelets for attachment to wall or ceiling suspension PLATE or extension with the magnetic hook HOOK for attachment to the HANGER suspension system (Suspended installation from the ceiling).
The right accessories for your desired mounting are included in the scope of delivery together with a drilling template.
Temperature resistance
- 200 °C to + 200 °C
Thermal conductivity
0,032 – 0,038 W/mK
UV-resistance
Maximum UV resistance, does not yellow
Harmful substance information
Certified according to Eco-Tex Standard 100 as not harmful to health, mineral-fibre free, CFC-free, propellant-free
Property right
Protected product, property right no. 402013200146-0003, 402014100217-0008, 002527127-000
Hint
Free-hanging installation on the magnetic suspension system increases the effective absorption surface of the absorbers, as sound waves can also hit the elements from above. This improves the sound absorption effect.
Tolerance
This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.
In the production (foaming) of this acoustic material different sized pores (voids) can arise. Voids are typical for the material, do not represent a quality defect and do not affect the acoustic properties of the absorber.
More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.
For those who expect more - aixFOAM Premium sound absorbers
Our sound absorbers made of thermoset acoustic foam are the ideal solution for rooms with particularly high soundproofing and fire protection requirements. They owe their unsurpassed acoustic properties to the extremely fine, open pore structure that almost completely absorbs sound. They are flame retardant without the addition of flame retardants and thus meet many regulations to ensure fire safety in public buildings.
Maximum sound absorption
Flame retardant according to DIN 4102 B1 / C-s2, d0 according to DIN EN 13501
Form-stable and colour-fast no yellowing!
Very low weight
Antistatic, fibre-free and elastic
Absorption values
The measurements of the sound absorption coefficient were determined according to DIN EN ISO 354 (reverberation room) and refer to an absorber area of 100 cm x 50 cm.
Sound absorption coefficients for MAGNETIC Drop in white-grey
Frequency- Frequency
Höhe 8 cm
125 Hz
0,23
250 Hz
0,77
500 Hz
1,00
1000 Hz
1,11
2000 Hz
1,21
4000 Hz
1,19
Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions. The sound absorption coefficients according to DIN EN ISO 354 (reverberation chamber) stated above were calculated in extensive measurements.
Profit from sound insulation directly from the manufacturer!
At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 65 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.
Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory naturally in the best quality.
Use of high quality acoustic foams from Germany
Precision manufacturing on the latest CNC cutting machines and systems
Standard solutions or individual small and series manufacturing of noise insulation
Advice, planning, production and brokering of assembly partners
Brand quality
from the manufacturer „Made in Germany“
Production
for you, individually in a few days
Experience
for 65 years soundproofing experts
Award
ISO 9001:2015 certified
Areas of application

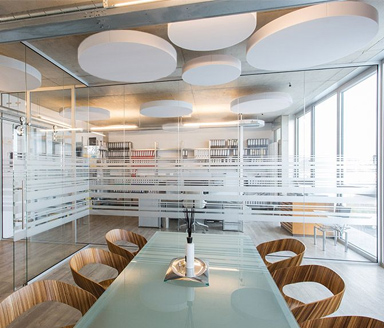

„The practical acoustic sets are particularly popular on ceilings in nurseries, schools or catering establishments. With the clever magnetic system, the absorbers are mounted on the wall or ceiling with a single click. By adding a magnetic hook, the absorbers can be attached to the hanging system on the ceiling as free-floating acoustic elements.“
Agnes Hermanns, Customer advisor
