Application Areas: Schools / Nurseries, Function room / Concert hall, Sports hall / Swimming pool, Architecture / Living, Offices / Call centres, Exhibition construction, Gastronomy / Restaurants, Surgery / Law firm, Suspended Ceilings / Acoustic Ceilings, Server room, Premium Schallschutz,

STICKY Octo Set

Good acoustics in a practical set

STICKY acoustic ceiling set for room sizes from 10 m² with sound insulation and Fire Protection Plus

Fully calculated sets for various room sizes
Extra fine-pored thermoset acoustic foam for maximum sound absorption
Very light and flame retardant circle elements according to DIN 4102 B1
Available in white-grey, titanium grey and white-grey/titanium grey
Quick and easy installation
Ideal for e.g. schools and kindergartens, retail and wholesale areas, public facilities / buildings, entrance areas, open-plan offices, conference rooms, call centres

In 2 simple steps to your perfect acoustics:

1. Colour

2. Room size

How many do you need?

Pack = baffles

Ready configured? Continue here

Your choice:

Pack = baffles

Do you need help?

+49 (0)2403 - 83 83 022 info@aixfoam.com

What's in the box?

Pack = baffles

* incl. VAT excl. Shipping

Impressions

Acoustic Ceiling Set STICKY Octo Set - Good acoustics in a practical set.

Octagonal sound absorber made of duromer acoustic foam with fire protection class DIN 4102 B1
Easiest selection criteria: Only choose room size and colour
Low weight and extraordinarily high sound absorption
Self-adhesive, ideal as soundproofing for ceilings

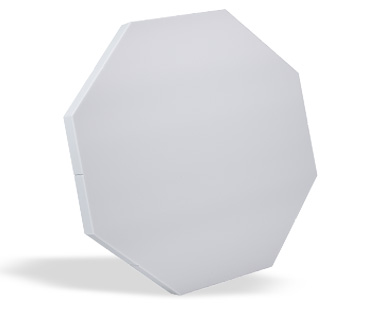

octagonal, self-adhesive sound absorber with enhanced fire protection class

Product data

Content

- 3 x Ø 80 cm x 6 cm (height)
- 8 x Ø 60 cm x 9,6 cm (height)
- 3 x Ø 80 cm x 6 cm (height)
- 8 x Ø 60 cm x 9,6 cm (height)
- 3 x Ø 80 cm x 6 cm (height), titanium grey
- 8 x Ø 60 cm x 9,6 cm (Höhe), (height), white-grey
- 2 x Ø 100 cm x 8 cm (height)
- 6 x Ø 80 cm x 6 cm (height)
- 8 x Ø 60 cm x 9,6 cm (height)
- 2 x Ø 100 cm x 8 cm (height)
- 6 x Ø 80 cm x 6 cm (height)
- 8 x Ø 60 cm x 9,6 cm (height)
- 2 x Ø 100 cm x 8 cm (height), titanium grey
- 3 x Ø 80 cm x 6 cm (height), white-grey
- 3 x Ø 80 cm x 6 cm (height), titanium grey
- 8 x Ø 60 cm x 9,6 cm (height), white-grey
- 4 x Ø 120 cm x 8 cm (height)
- 4 x Ø 100 cm x 6 cm (height)
- 6 x Ø 80 cm x 9,6 cm (height)
- 4 x Ø 120 cm x 8 cm (height)
- 4 x Ø 100 cm x 6 cm (height)
- 6 x Ø 80 cm x 9,6 cm (height)
- 2 x Ø 120 cm x 8 cm (height), white-grey
- 2 x Ø 120 cm x 8 cm (height), titanium grey
- 2 x Ø 100 cm x 6 cm (height), white-grey
- 2 x Ø 100 cm x 6 cm (height), titanium grey
- 6 x Ø 80 cm x 9,6 cm (height), white-grey
- 4 x Ø 120 cm x 6 cm (height)
- 4 x Ø 100 cm x 8 cm (height)
- 6 x Ø 80 cm x 6 cm (height)
- 8 x Ø 60 cm x 9,6 cm (height)
- 4 x Ø 120 cm x 6 cm (height)
- 4 x Ø 100 cm x 8 cm (height)
- 6 x Ø 80 cm x 6 cm (height)
- 8 x Ø 60 cm x 9,6 cm (height)
- 2 x Ø 120 cm x 6 cm (height), white-grey
- 2 x Ø 120 cm x 6 cm (height), titanium grey
- 2 x Ø 100 cm x 8 cm (height), white-grey
- 2 x Ø 100 cm x 8 cm (height), titanium grey
- 3 x Ø 80 cm x 6 cm (height), white-grey
- 3 x Ø 80 cm x 6 cm (height), titanium grey
- 8 x Ø 60 cm x 9,6 cm (height), white-grey
- 4 x Ø 120 cm x 6 cm (height)
- 8 x Ø 100 cm x 8 cm (height)
- 9 x Ø 80 cm x 6 cm (height)
- 8 x Ø 60 cm x 9,6 cm (height)
- 4 x Ø 120 cm x 6 cm (height)
- 8 x Ø 100 cm x 8 cm (height)
- 9 x Ø 80 cm x 6 cm (height)
- 8 x Ø 60 cm x 9,6 cm (height)
- 2 x Ø 120 cm x 6 cm (height), white-grey
- 2 x Ø 120 cm x 6 cm (height), titanium grey
- 2 x Ø 100 cm x 8 cm (height), white-grey
- 2 x Ø 100 cm x 8 cm (height), titanium grey
- 3 x Ø 80 cm x 6 cm (height), white-grey
- 3 x Ø 80 cm x 6 cm (height), titanium grey
- 8 x Ø 60 cm x 9,6 cm (height), white-grey
- 6 x Ø 120 cm x 6 cm (height)
- 8 x Ø 100 cm x 8 cm (height)
- 9 x Ø 80 cm x 6 cm (height)
- 8 x Ø 60 cm x 9,6 cm (height)
- 6 x Ø 120 cm x 6 cm (height)
- 8 x Ø 100 cm x 8 cm (height)
- 9 x Ø 80 cm x 6 cm (height)
- 8 x Ø 60 cm x 9,6 cm (height)
- 4 x Ø 120 cm x 6 cm (height), white-grey
- 2 x Ø 120 cm x 6 cm (height), titanium grey
- 6 x Ø 100 cm x 8 cm (height), white-grey
- 2 x Ø 100 cm x 8 cm (height), titanium grey
- 3 x Ø 80 cm x 6 cm (height), white-grey
- 6 x Ø 80 cm x 6 cm (height), titanium grey
- 8 x Ø 60 cm x 9,6 cm (height), white-grey
- 8 x Ø 120 cm x 6 cm (height)
- 8 x Ø 100 cm x 8 cm (height)
- 12 x Ø 80 cm x 6 cm (height)
- 8 x Ø 60 cm x 9,6 cm (height)
- 8 x Ø 120 cm x 6 cm (height)
- 8 x Ø 100 cm x 8 cm (height)
- 12 x Ø 80 cm x 6 cm (height)
- 8 x Ø 60 cm x 9,6 cm (height)
- 4 x Ø 120 cm x 6 cm (height), white-grey
- 4 x Ø 120 cm x 6 cm (height), titanium grey
- 6 x Ø 100 cm x 8 cm (height), white-grey
- 2 x Ø 100 cm x 8 cm (height), titanium grey
- 6 x Ø 80 cm x 6 cm (height), white-grey
- 6 x Ø 80 cm x 6 cm (height), titanium grey
- 8 x Ø 60 cm x 9,6 cm (height), white-grey

Material

Thermoset acoustic foam

Colours

White-grey, titanium grey

Fire classes

DIN 4102 B1

More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article.

Fastening options

Self-adhesive kit

Temperatureresistance

- 200 °C to + 200 °C

Thermal conductivity

0,032 – 0,038 W/mK

UV-resistance

Maximum UV resistance, does not yellow

Harmful substance information

Certified according to Eco-Tex Standard 100 as not harmful to health, mineral-fibre free, CFC-free, propellant-free

Property right

Protected product, property right no. 402013200146-0003, 402014100217-0008, 002527127-0008

Tolerance

This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.

During the production (foaming) of this acoustic material, different sized pores (blowholes) can be produced. Blowholes are typical of materials, do not represent a lack of quality and do not affect the acoustic properties of the absorber.

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

For those who expect more - aixFOAM Premium sound absorbers

Our sound absorbers made of thermoset acoustic foam are the ideal solution for rooms with particularly high soundproofing and fire protection requirements. They owe their unsurpassed acoustic properties to the extremely fine, open pore structure that almost completely absorbs sound. They are flame retardant without the addition of flame retardants and thus meet many regulations to ensure fire safety in public buildings.

Maximum sound absorption
Flame retardant according to DIN 4102 B1
Form-stable and colour-fast – no yellowing!
Very low weight
Antistatic, fibre-free and elastic

Absorption values

The measurements of the sound absorption coefficient were determined according to DIN EN ISO 354 (reverberation room) and refer to an absorber area of 100 cm x 50 cm.

Sound absorption coefficients for STICKY Octo Set in white-grey

Frequency range	Height 6 cm	Height 8 cm	Height 9,6 cm
125 Hz	0,22	0,23	0,32
250 Hz	0,53	0,77	0,87
500 Hz	0,80	1,00	1,01
1000 Hz	0,91	1,11	1,07
2000 Hz	1,07	1,21	1,20
4000 Hz	1,05	1,19	1,20

Sound absorption coefficients for STICKY Octo Set in titanium-grey

Frequency range	Height 6 cm	Height 8 cm	Height 9,6 cm
125 Hz	0,22	0,31	0,36
250 Hz	0,65	0,71	0,80
500 Hz	0,81	0,93	1,01
1000 Hz	0,90	0,97	1,03
2000 Hz	1,00	1,01	1,05
4000 Hz	1,01	1,02	1,04

Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions. The sound absorption coefficients according to DIN EN ISO 354 (reverberation chamber) stated above were calculated in extensive measurements.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 60 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

Use of high quality acoustic foams from Germany
Precision manufacturing on the latest CNC cutting machines and systems
Standard solutions or individual small and series manufacturing of noise insulation
Advice, planning, production and brokering of assembly partners
