Premium ceiling absorber 'Cubix'
Premium ceiling absorber 'Cubix'
Effective sound insulation for high rooms
Art.nr.: SH016Cubix
Premium ceiling absorber 'Cubix'
Effective sound insulation for high rooms
Art.nr.: SH016Cubix

Premium ceiling absorber 'Cubix'

Effective sound insulation for high rooms
Art.nr.: SH016Cubix

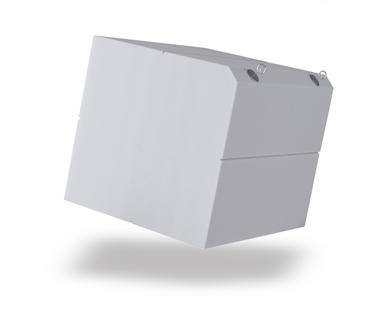

Highly effective, cubic sound absorber with Fire Protection Plus and maximum soundproofing
  • Extra fine-pored thermoset acoustic foam for maximum sound absorption
  • Sound absorber in cubic form with ornamental grooves
  • Extraordinary heat and flame resistant (DIN 4102 B1)
  • For suspending from the ceiling
  • With rounded or straight corners
  • Available in two sizes
  • Ideal for sound attenuation in industrial halls, reception halls, foyers, airport and station halls – wherever high, expansive rooms favour the spread of sound
In 3 simple steps to your perfect acoustics:

* Required Fields

Your choosen product is shipped in packs of 1.
How many packs of 1 do you need?

Sorry, the maximum amount you can order is 10000.

Sorry, the minimum amount you can order is 1.

1 Pack = = 1
Ready configured? Continue here
Your choice:
Please, do not hesitate to contact us.

Phone: +49 2403 / 83830 - 22
Monday - Friday 8 am - 5 pm CET

Email: sales@aixfoam.com
24 hours a day
What's in the box?
You will receive a total of 1 packing unit with the following content:

Premium ceiling absorber 'Cubix'
Art.nr. SH016Cubix

1 Pack =
= 1

Premium Cubix ceiling absorber SH016Cubix - Highly effective sound insulation for high rooms

  • Highly effective soundproofing element for hanging from the ceiling
  • Heat and flame resistance according to DIN 4102 B1
  • Ideal sound insulation across all frequency ranges
Sound absorber SH016Cubix

Product data

Format, surface Cubic sound absorber with or without rounded corners, flat surface with one ornamental groove per side
Sizes Small, V78
Big, V132
Special sizes Special sizes possible upon request
Material Thermoset acoustic foam
Colours White-grey
Fire classes DIN 4102 B1
More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article (German).
Fastening options The elements are equipped with hooks for hanging into the UNO cable system on the top. The Basic or Style suspension systems can be used for a single suspension.
Temperature­resistance - 200 °C to + 200 °C
Thermal conductivity 0,032 – 0,038 W/mK
UV-resistance Maximum UV resistance, does not yellow
Harmful substance information Certified according to Eco-Tex Standard 100 as not harmful to health, mineral-fibre free, CFC-free, propellant-free
Tolerance This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.
During the production (foaming) of this acoustic material, different sized pores (blowholes) can be produced. Blowholes are typical of materials, do not represent a lack of quality and do not affect the acoustic properties of the absorber.

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

For those who expect more - aixFOAM Premium sound absorbers

Our sound absorbers made of thermoset acoustic foam are the ideal solution for rooms with particularly high soundproofing and fire protection requirements. They owe their unsurpassed acoustic properties to the extremely fine, open pore structure that almost completely absorbs sound. They are flame retardant without the addition of flame retardants and thus meet many regulations to ensure fire safety in public buildings.

aixFOAM Premium sound absorbers
  • Maximum sound absorption
  • Flame retardant according to DIN 4102 B1
  • Form-stable and colour-fast – no yellowing!
  • Very low weight
  • Antistatic, fibre-free and elastic

Absorption values

The measurements of the sound absorption coefficient were determined according to DIN EN ISO 354 (reverberation room) and refer to an absorber area of 100 cm x 50 cm.

Sound absorption coefficients for SH016Cubix in white-grey


Frequency
range
Quadrat
Small, V78
Quadrat
Big, V132
125 Hz 0,37 0,48
250 Hz 0,89 0,92
500 Hz 1,01 1,01
1000 Hz 1,02 1,02
2000 Hz 1,04 1,04
4000 Hz 1,03 1,03
Sound absorber/ sound insulation in the reverberation chamber when calculating the absorption coefficients
Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions such as RWTH University or the Technical University in Aachen. The sound absorption coefficients according to DIN 52212 stated above were calculated in extensive measurements.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 60 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

  • Use of high quality acoustic foams from Germany
  • Precision manufacturing on the latest CNC cutting machines and systems
  • Standard solutions or individual small and series manufacturing of noise insulation
  • Advice, planning, production and brokering of assembly partners
An aixFOAM employee manufactures sound absorbers for sound insulation.
Brand qualityt
from the manufacturer
"Made in Germany"
Production
for you, individually
in a few days
Experience
for 60 years
soundproofing experts
Award
ISO 9001:2015 certified
The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

„Thanks to its generous dimension and extra-fine-pored material, the Cubix is one of our most effective sound absorbers when it comes to sound insulation in high, expansive rooms. Hanging in series on the practical rope system, it unfolds its impressive potential, especially in halls.“

Holger Thoma, customer advisor

We are here for you!

Do you need help or do you have any questions about the product?

Use our help area with brief answers to the most frequently asked questions from our customers.

Of course we are happy to help you with advice, free of charge.

+49 2403 / 83830 - 22
Monday to Friday
08:00 hours to 17:00 hours

sales@aixfoam.com
Daily from 00.00 – 24.00 hours

Impressions?

This is where you can find some application pictures of our sound absorber SH016Cubix.
