Acoustic frame with your preferred absorber
Acoustic frame with your preferred absorber
Sound insulation in the perfect frame
Art.nr.: SH-Frame
Acoustic frame with your preferred absorber
Sound insulation in the perfect frame
Art.nr.: SH-Frame

Acoustic frame with your preferred absorber

Sound insulation in the perfect frame
Art.nr.: SH-Frame
Elegant installation cassette with sound absorber in your preferred profile
  • Elegant acoustic frames made from anodised aluminium (matt silver)
  • Back has patented, effect-reinforcing perforation structure
  • With prefabricated installation aids for wall and ceiling installation
  • Available in various material thicknesses, formats, fire classes and colours
  • Can be used flexibly to optimise room acoustics in almost any area

In 6 simple steps to your perfect acoustics:

* Required Fields

Sorry, the maximum amount you can order is 10000.

Sorry, the minimum amount you can order is 1.

1 Pack = = 1
Ready configured? Continue here
Your choice:
Please, do not hesitate to contact us.

Phone: +49 2403 / 83830 - 22
Monday - Friday 8 am - 5 pm CET

Email: sales@aixfoam.com
24 hours a day
What's in the box?
You will receive a total of 1 packing unit with the following content:

Acoustic frame with your preferred absorber
Art.nr. SH-Frame

1 Pack =
= 1
€306.93
incl. 16 % VAT

Acoustic frame with your preferred absorber – Sound insulation in the perfect frame

  • Sound absorber in an elegant acoustic frame made of anodised aluminium
  • Ideal for wall and ceiling installation
  • Back has patented, effect-reinforcing perforation structure
Sound absorber in an elegant installation cassette

Product data for acoustic frame

Format Rectangular installation cassette with perforated rear (perforated structure), 102 cm x 52 cm
Height 2 cm
Weight ~ 1.5 kg
Material Aluminium anodised
Colour Silver matt
Fastening Installation aids on the rear of the installation cassette for wall and ceiling installation in portrait or landscape format
Accessories Basic hanging system, Style hanging system for ceiling installation, vibration anchor for decoupled wall and ceiling installation
Options You can choose the installation cassette directly as a fastening option for all aixFOAM sound absorbers. In this case, you receive the cassette ready fitted by us.
Alternatively, you can choose the installation cassette as an individual product and fit it yourself. Please note in this case that the selected sound absorber must be ordered WITHOUT self-adhesive kit (as fastening option) because of the openings in the rear of the cassette.

Product data sound absorbers

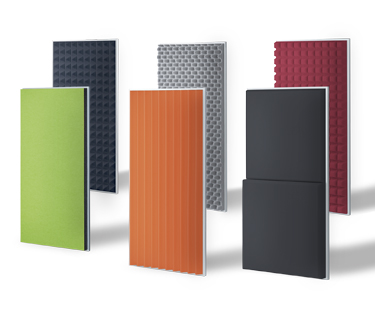

Format, surface
  • Smooth SH001: Rectangular panel (100 cm x 50 cm), flat surface
  • Nub SH002: Rectangular panel (100 cm x 50 cm), nubbed profile
  • Pyramid SH003: Rectangular panel (100 cm x 50 cm), pyramid profile
  • Square SH004: 2 x Square panel (50 cm x 50 cm), flat surface, rounded edges
  • Trapezium SH005: Rectangular panel (100 cm x 50 cm), trapezoid profile surface
  • Triangle SH015: Rectangular panel (100 cm x 50 cm), triangular structure
  • Felt SH006: Rectangular panel (100 x 50 cm), acoustic foam core with felt surface
Material thicknesses
  • Smooth SH001: 3 cm, 4 cm, 5 cm, 8 cm
  • Nub SH002: 3 cm (1.5 cm base/ 1.5 cm nub), 4 cm (2 cm base/ 2 cm nub), 6 cm (3 cm base/ 3 cm nub)
  • Pyramid SH003: 5 cm (2 cm base/ 3 cm pyramid), 7 cm (2 cm base/ 5 cm pyramid), 10 cm (3 cm base, 7 cm pyramid)
  • Square SH004: 3 cm, 4 cm, 5 cm, 8 cm
  • Trapezium SH005: 3.5 cm (2.0 cm base/ 1.5 cm trapezoid), 4.5 cm (2 cm base/ 2.5 cm trapezoid), 6.5 cm (3 cm base/ 3.5 cm trapezoid)
  • Triangle SH015: 3 cm (1,0 cm base/ 2 cm triangular profile), 5 cm (2 cm base/ 3 cm triangular profile), 7 cm (2 cm base/ 5 cm triangular profile), 10 cm (3 cm base, 7 cm triangular profile)
  • Felt SH006: 3 cm, 5 cm, 8 cm
Material Open-cell PUR acoustic foam
Colours Anthracite, light grey, raspberry red, orange
Felt SH006:
Acoustic core in anthracite
Felt colours: Marbled sandstone, marbled ivory, marbled light grey, marbled cream white, marbled graphite grey, marbled maroon, marbled amber, marbled fuchsia red, black, ash grey, terra brown, mocha brown, design red, may green, royal blue, sky blue, sunny yellow, marbled blackberry, marbled lavender, marbled forest green
Fire classes Without, UL 94 HF 1, FMVSS 302 (DIN 75200), FAR 25.853, DIN 4102 B1 upon request (see article SH-MH-Frame), fire class depends on colour selected
More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article (German).
Temperature­resistance - 40 °C to + 100 °C
UV-resistance UV protection against yellowing thanks to UV blocker additive
For further information, please refer to our matching aixFOAM knowledge article (German) on the topic of "Light ageing - UV yellowing protection"
Harmful substance
information
Mineral fibre free, CFC-free
Tolerance This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.
In the production (foaming) of this acoustic material different sized pores (voids) can arise. Voids are typical for the material, do not represent a quality defect and do not affect the acoustic properties of the absorber.

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

Absorption values

The measurements of the sound absorption coefficient were determined according to DIN EN ISO 354 (reverberation chamber) and refer to an absorber area of 100 cm x 50 cm/50 cm x 50 cm. The exact absorption values can be found on the article pages of our respective sound absorbers.

Sound absorber/ sound insulation in the reverberation chamber when calculating the absorption coefficients
Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions such as RWTH University or the Technical University in Aachen. The sound absorption coefficients according to DIN 52212 stated above were calculated in extensive measurements.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 60 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

  • Use of high quality acoustic foams from Germany
  • Precision manufacturing on the latest CNC cutting machines and systems
  • Standard solutions or individual small and series manufacturing of noise insulation
  • Advice, planning, production and brokering of assembly partners
An aixFOAM employee manufactures sound absorbers for sound insulation.
Brand qualityt
from the manufacturer
"Made in Germany"
Production
for you, individually
in a few days
Experience
for 60 years
soundproofing experts
Award
ISO 9001:2015 certified
The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

„The elegant installation cassettes are the perfect addition to our aixFOAM sound absorbers. They not only ensure an especially high quality look in every room, they also enhance the sound installation effect and facilitate easy and flexible installation. As a result, the sound absorbers can be fitted without problems at any time, and also dismantled and moved without damaging the substructure. Above all, this is an advantage in rented or leased premises.“

Murielle Pirotte, customer advisor

We are here for you!

Do you need help or do you have any questions about the product?

Use our help area with brief answers to the most frequently asked questions from our customers.

Of course we are happy to help you with advice, free of charge.

+49 2403 / 83830 - 22
Monday to Friday
08:00 hours to 17:00 hours

sales@aixfoam.com
Daily from 00.00 – 24.00 hours

Impressions?

This is where you can find some application pictures of our acoustic frame.
