Acoustic Set Square Industry Highly effective complete sets for noise protection in industrial areas #SquareSetIND

Acoustic Set Square Industry

Highly effective complete sets for noise protection in industrial areas #SquareSetIND

Highly effective complete sets for noise protection in industrial areas
  • Combination of ceiling sails and wall panels, adapted to different room or area sizes
  • Made of extra fine-pored Duromer acoustic foam for maximum sound absorption effect
  • Extraordinary heat and flame resistance according to fire protection class DIN 4102 B1
  • Ceiling sail (small or large) including suspended magnet system to hang from the ceiling above the noise source (rope length up to 7 m individually adjustable)
  • Self-adhesive wall elements to stop the spread of noise
  • Available colours: titanium grey, white grey
  • Ideal for noise reduction on noisy machines, plants and equipment

In 5 simple steps to your perfect acoustics:

Quantity delivered

Your chosen product is shipped in packs of 1.
Ready configured? Continue here

Your choice:

We will send you a binding quote asap.

Acoustic Set Square Industry - Stops noise where it starts.

  • Pre-configured sets of ceiling sailss and wall panelss
  • For effective sound insulation directly at the noise source
  • Low weight and extraordinary heat and flame resistance according to fire protection class DIN 4102 B1
Square sound absorber with flat surface

Product data

Format, surface
ceiling sails: Rectangular panel (small: 125 cm x 62.5 cm, large: 125 cm x 125 cm), flat surface

wall panels: Rectangular panel (120 cm x 62.5 cm), flat surface

Material thicknesses
ceiling sails: 12 cm

wall panels: 9,6 cm

Material
Thermoset acoustic foam
Colours
White-grey, titanium grey
Content
    • 6 ceiling sails
    • 12 wall panels

    • 12 ceiling sails
    • 12 wall panels

    • 10 ceiling sails
    • 16 wall panels

    • 20 ceiling sails
    • 16 wall panels

    • 18 ceiling sails
    • 16 wall panels

    • 36 ceiling sails
    • 16 wall panels

    • 24 ceiling sails
    • 20 wall panels

    • 48 ceiling sails
    • 20 wall panels

    • 28 ceiling sails
    • 20 wall panels

    • 56 ceiling sails
    • 20 wall panels

    • 32 ceiling sails
    • 24 wall panels

    • 64 ceiling sails
    • 24 wall panels

    • 40 ceiling sails
    • 24 wall panels

    • 80 ceiling sails
    • 24 wall panels

Fire classes
DIN 4102 B1

More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article (German).

Fastening options
Ceiling sail: Metal hooks on the top for horizontal suspension in the Basic suspension system (cable length up to 7 m, individually adjustable), magnetic eyelets for attaching to the ceiling

Wall panels: Self-adhesive coating

Temperatureresistance
- 200 °C to + 200 °C
Thermal conductivity
0,032 – 0,038 W/mK
UV-resistance
Highly UV-resistant, does not yellow
Harmful substance information
Mineral fibre free, CFC-free, propellant-free
Tolerance
This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.

In the production (foaming) of this acoustic material different sized pores (voids) can arise. Voids are typical for the material, do not represent a quality defect and do not affect the acoustic properties of the absorber.

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

For those who expect more - aixFOAM Premium sound absorbers

Our sound absorbers made of thermoset acoustic foam are the ideal solution for rooms with particularly high soundproofing and fire protection requirements. They owe their unsurpassed acoustic properties to the extremely fine, open pore structure that almost completely absorbs sound. They are flame retardant without the addition of flame retardants and thus meet many regulations to ensure fire safety in public buildings.

Stacked sound absorbers with flat surface and increased fire protection class
  • Maximum sound absorption
  • Flame retardant according to DIN 4102 B1
  • Form-stable and colour-fast – no yellowing!
  • Very low weight
  • Antistatic, fibre-free and elastic

Absorption values

The measurements of the sound absorption coefficient were determined according to DIN EN ISO 354 (reverberation room) and refer to an absorber area of 100 cm x 50 cm.

Sound absorption coefficients for ceiling sails SH010 Square Industry in white-grey


Frequency
range
12cm
Height
12 cm
125 Hz 0,39
250 Hz 0,98
500 Hz 1,03
1000 Hz 1,01
2000 Hz 1,07
4000 Hz 1,05

Sound absorption coefficients for ceiling sails SH010 Square Industry in titanium-grey


Frequency
range
12cm
Height
12 cm
125 Hz 0,37
250 Hz 0,96
500 Hz 1,00
1000 Hz 1,01
2000 Hz 1,02
4000 Hz 1,01

Sound absorption coefficients for wall panels SH001 MH Industry in white-grey


Frequency
range
9,6cm
Height
9,6 cm
125 Hz 0,32
250 Hz 0,91
500 Hz 1,02
1000 Hz 1,10
2000 Hz 1,12
4000 Hz 1,21

Sound absorption coefficients for wall panels SH001 MH Industry in titanium-grey


Frequency
range
9,6cm
Height
9,6 cm
125 Hz 0,30
250 Hz 0,76
500 Hz 0,97
1000 Hz 1,01
2000 Hz 1,00
4000 Hz 1,02
Sound absorber/ sound insulation in the reverberation chamber when determining the absorption values
Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions. The sound absorption coefficients according to DIN EN ISO 354 (reverberation chamber) stated above were calculated in extensive measurements.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 60 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

  • Use of high quality acoustic foams from Germany
  • Precision manufacturing on the latest CNC cutting machines and systems
  • Standard solutions or individual small and series manufacturing of noise insulation
  • Advice, planning, production and brokering of assembly partners
An aixFOAM employee manufactures sound absorbers for sound insulation.
Brand quality
from the manufacturer
"Made in Germany"
Production
for you, individually
in a few days
Experience
for 60 years
soundproofing experts
Award
ISO 9001:2015 certified
Areas of application
The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

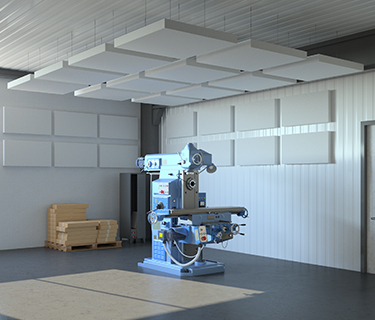

‘Our acoustic sets are optimal for noise protection in industrial areas. The combination of ceiling sails for mounting above the noise source and wall panels allows noise to be absorbed directly at the source. The clever mounting systems make the elements easy to install.’
