Ceiling mounting bracket set
Ceiling mounting bracket set
For mounting the aixFOAM cable systems
Art.nr.: Montagewinkel
Ceiling mounting bracket set
For mounting the aixFOAM cable systems
Art.nr.: Montagewinkel

Ceiling mounting bracket set

For mounting the aixFOAM cable systems
Art.nr.: Montagewinkel
  • Mounting bracket for attaching the aixFOAM Uno / Duo cable system to the ceiling
  • For installation in ceilings made of natural stone, masonry, reinforced concrete or prefabricated element ceilings made of brick, pumice or aerated concrete
In one simple step to your perfect acoustics:

* Required Fields

Sorry, the maximum amount you can order is 10000.

Sorry, the minimum amount you can order is 1.

1 Pack = = 1
Ready configured? Continue here
Your choice:
Please, do not hesitate to contact us.

Phone: +49 2403 / 83830 - 22
Monday - Friday 8 am - 5 pm CET

Email: sales@aixfoam.com
24 hours a day
What's in the box?
You will receive a total of 1 packing unit with the following content:

Ceiling mounting bracket set
Art.nr. Montagewinkel

1 Pack =
= 1

Ceiling mounting bracket set - For mounting the aixFOAM cable systems

  • Mounting bracket set for fastening the aixFOAM Uno / Duo cable system to the ceiling
  • For installation in ceilings made of natural stone, masonry, reinforced concrete or prefabricated element ceilings made of brick, pumice or aerated concrete

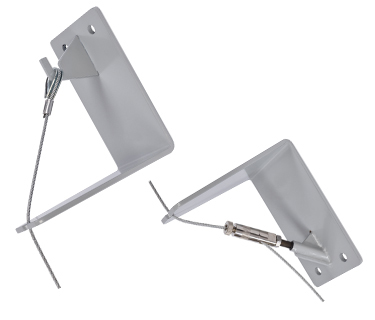

aixFOAM Ceiling mounting bracket set

Product data

Contents The mounting bracket set includes:
  • 1 x mounting bracket, left
  • 1 x mounting bracket, right
  • 4 x plate head screws
  • 4 x dowels
Dimensions 16 cm x 16 cm, Width: 10 cm
Material Powder coated steel
Colour Matt grey, RAL 9006
Assembly instructions To expand the cablesystem UNO you need ONE mounting bracket set.
To expand the cable system DUO you need TWO mounting bracket sets.
Drilling Hole diameter: Ø 10 mm
Bore depth: 100 mm
Recommended accessories The ceiling brackets are used to mount the UNO and DUO cable systems on ceilings made of natural stone, masonry, reinforced concrete or prefabricated element ceilings made of brick, pumice or aerated concrete
Outline / Layout Ceiling mounting bracket set

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 60 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

  • Use of high quality acoustic foams from Germany
  • Precision manufacturing on the latest CNC cutting machines and systems
  • Standard solutions or individual small and series manufacturing of noise insulation
  • Advice, planning, production and brokering of assembly partners
An aixFOAM employee manufactures sound absorbers for sound insulation.
Brand qualityt
from the manufacturer
"Made in Germany"
Production
for you, individually
in a few days
Experience
for 60 years
soundproofing experts
Award
ISO 9001:2015 certified
The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

„The ceiling bracket set allows you to anchor our “UNO” and “DUO” cable systems safely and reliably in the ceiling. This offers you much more flexibility when arranging your sound absorbers in the room . Before starting the installation, check the substructure is strong enough and beware of gas, electricity and water lines while drilling.“

Volker Rings, customer advisor
We are here for you!

Do you need help or do you have any questions about the product?

Use our help area with brief answers to the most frequently asked questions from our customers.

Of course we are happy to help you with advice, free of charge.

+49 2403 / 83830 - 22
Monday to Friday
08:00 hours to 17:00 hours

sales@aixfoam.com
Daily from 00.00 – 24.00 hours

Impressions?

Here you will find some images of our mounting bracket set in action.
