DOORIE out Insulation set for the outer door leaf

DOORIE out

Insulation set for the outer door leaf

Practical sound insulation set for mounting outside the door frame

  • Available in formats for various standard door sizes

    Click here for the measuring guide!

  • With an easy-care felt surface in 20 different colors
  • With cutout/contour cut for the door handle
  • Permanently adhesive or removable without residue
  • Includes practical mounting aids and video instructions
  • Ideal for interior doors in living spaces, offices, restaurants, medical practices, law firms, kindergartens, schools, and more

In 7 simple steps to your perfect acoustics:

black ash grey marbled graphite grey marbled light grey marbled maroon terra brown mocha brown marbled cream white marbled ivory marbled sandstone marbled blackberry marbled lavender design red marbled fuchsia red marbled amber sunny yellow marbled forest green may green sky blue royal blue
3 cm 5 cm 8 cm
rabbeted blunt (unrabbeted)
584 mm 610 mm 650 mm 672 mm 700 mm 709 mm 722 mm 735 mm 750 mm 772 mm 800 mm 822 mm 834 mm 850 mm 860 mm 872 mm 900 mm 922 mm 950 mm 959 mm 972 mm 985 mm
1972 mm 1985 mm 2016 mm 2030 mm 2097 mm 2110 mm
Permanently adhesive | STICKY self-adhesive kit Removable | STICKY self-adhesive kit
Without flame protection | Polyether With flame retardant additive DIN4102 B2 | Polyether
Ready configured? Continue here

Your choice:

incl. VAT  excl. Shipping

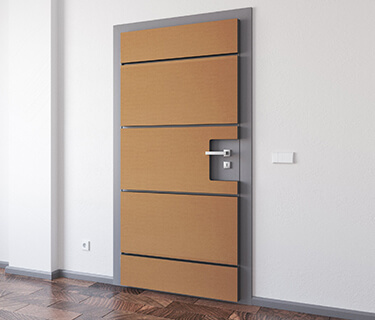

DOORIE out – The original for mounting outside the door frame

  • Door insulation set with easy-care felt surface
  • Available in various standard formats and 20 trendy colour variants
  • Installed outside the door frame
  • Permanently adhesive or removable - without leaving any residue
DOORIE out

Product data

Format, surface
Set consisting of 5 rectangular elements (1 x recess for jack), acoustic foam core with felt surface
Material thicknesses
3 cm, 5 cm, 8 cm
Material
Open-cell PUR acoustic foam with acoustic felt lamination
Colours
Acoustic core in anthracite

Felt colours: Marbled sandstone, marbled ivory, marbled light grey, marbled cream white, marbled graphite grey, marbled maroon, marbled amber, marbled fuchsia red, black, ash grey, terra brown, mocha brown, design red, may green, royal blue, sky blue, sunny yellow, marbled blackberry, marbled lavender, marbled forest green

Property right
Protected product, property right no. 007797253-0001, 007797253-0002
Fire classes
PUR-E (without flame protection), PUR-E++ (DIN 4102 B2)

The fire classes of the aixFOAM absorbers do not only refer to the material, but always include the products including the mounting options offered by us, such as our STICKY self-adhesive kit.

More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article.

Fastening options
STICKY self-adhesive finish - permanently adhesive or removable without residue
Notes on measuring

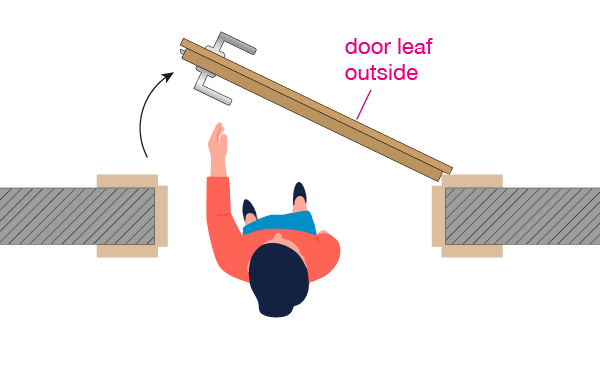

To select your suitable door insulation set, you need the door leaf outer dimension. To do this, measure both the width and the height of your door leaf on the outside, i.e. on the side in the direction of which your door can be opened.

Click here for the measuring guide!

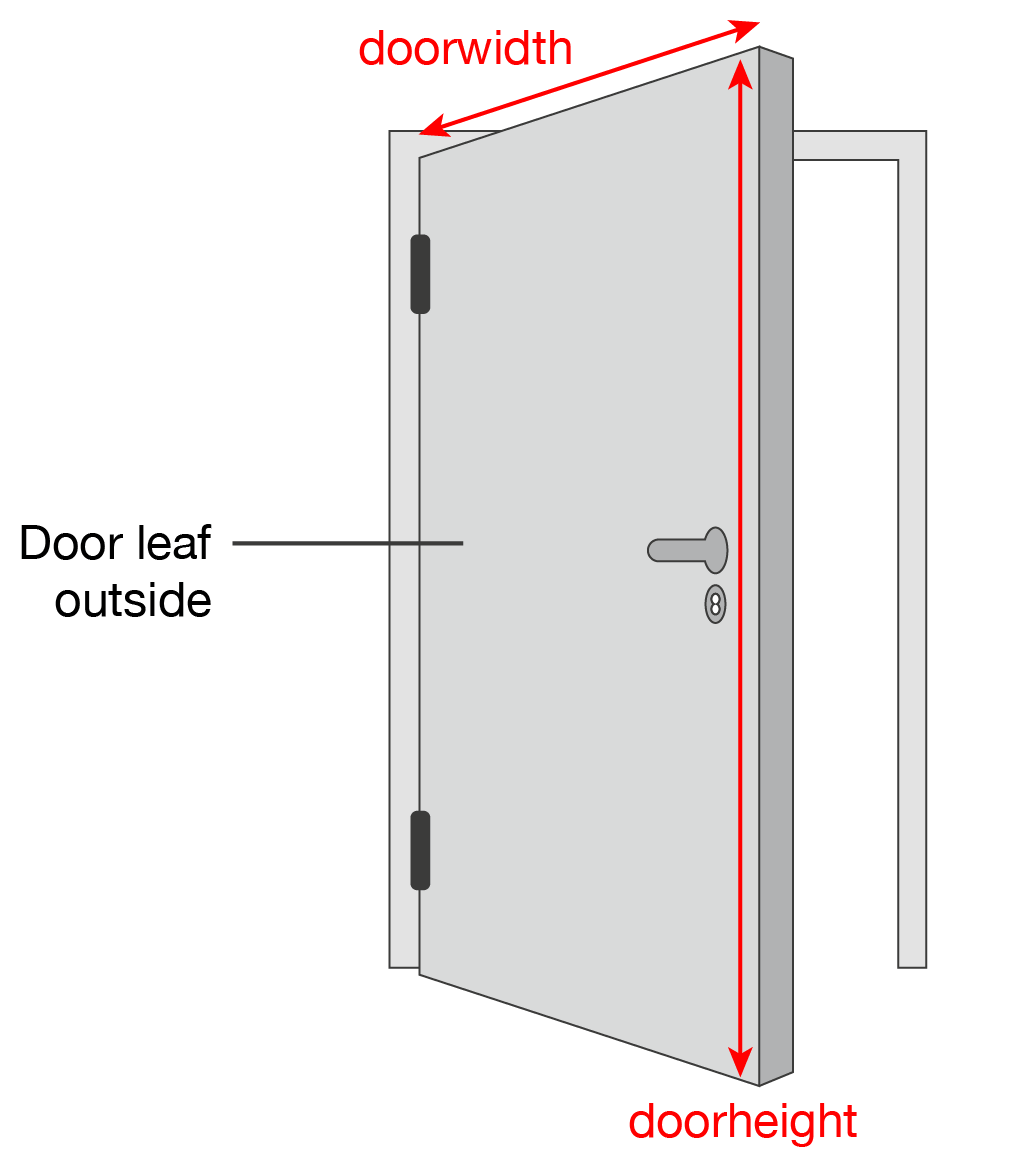

Door structure - Determining the outer door leaf dimension Measuring the outer door leaf dimension

Why do I ALWAYS have to specify the external dimensions of the door leaf?

The door leaf outer dimension is ALWAYS specified as the nominal dimension (standard dimension) for doors. It does not matter whether you want to attach your door insulation set to the inside or outside of the door leaf. If you decide to mount it on the inside of the door leaf (inside the door frame), you will receive your set from us shortened so that it does not rub against the door frame.

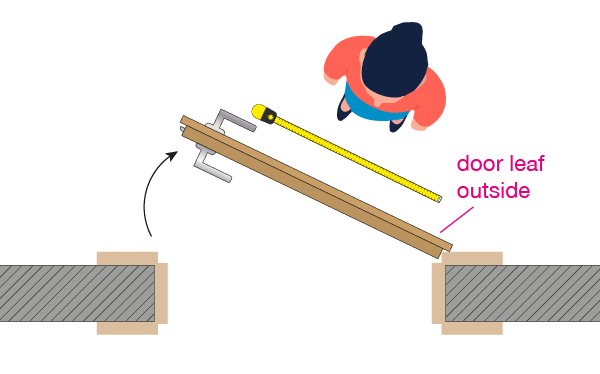

External door leaf dimensions measuring
Notes on the door rabbet

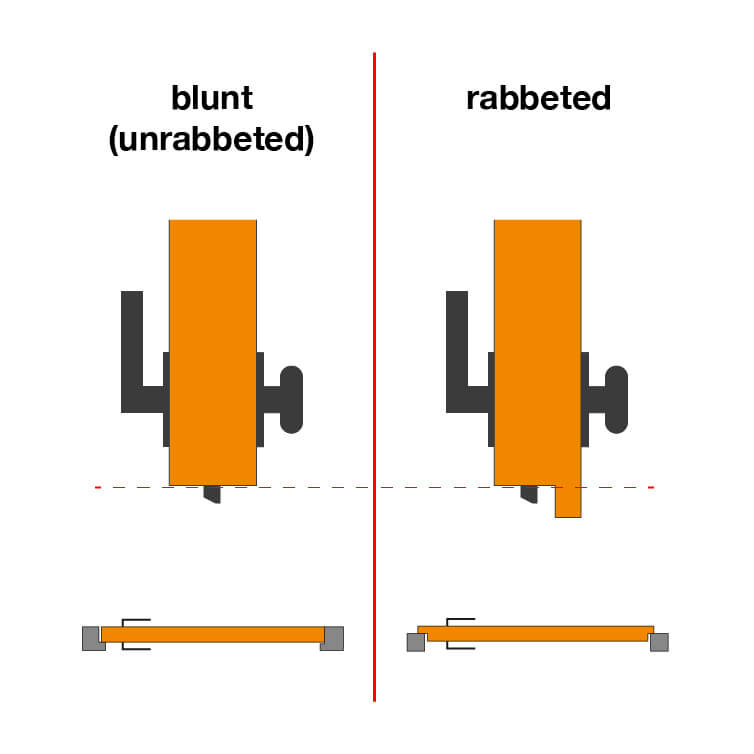

Difference blunt/unrabbet door leaf
Mounting instructions
Always attach the absorbers in the direction of the sound source/noise source for optimum effectiveness.

In order to avoid the elements grinding on the frame when opening the door, the parts are slightly shortened at the factory, so that they should be glued all around with a distance of 1 cm to the outer edge of the door leaf. A shadow joint of 1 cm should also be left between the individual elements. Detailed instructions for installation can be found in the supplied installation instructions.

Care instructions
Easy-care water and dirt-repellent felt surface
Cleaning is possible with a clothes brush, hoover or soft cloth.
Further details can be found in the knowledge article Care and cleaning of felt surfaces.
Temperatureresistance
- 40 °C to + 100 °C
Harmful substance information
Mineral fibre free
Tolerance
This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.
Product variants
For the sound insulation of a room door inside the frame, use our door insulation set for installation inside the door frame

More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.

Absorption values

The measurements of the absorption coefficient were performed on PUR-ES acoustic foams from RWTH Aachen. All values refer to absorbers with a size of 100 cm x 50 cm and were calculated according to DIN 52212.


Frequency
range
3cm
Height
3 cm
5cm
Height
5 cm
8cm
Height
8 cm
125 Hz 0,10 0,17 0,23
250 Hz 0,50 0,73 0,75
500 Hz 0,78 0,71 0,73
1000 Hz 0,63 0,59 0,64
2000 Hz 0,49 0,57 0,59
4000 Hz 0,53 0,45 0,70
Sound absorber/ sound insulation in the reverberation chamber when determining the absorption values
Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions such as RWTH University or the Technical University in Aachen. The sound absorption coefficients according to DIN 52212 stated above were calculated in extensive measurements.

Profit from sound insulation directly from the manufacturer!

At aixFOAM we make sound insulation for applications in room acoustics and technical acoustics. And because we do this particularly well, we have been doing it for 65 years. Over this time we have been constantly working on the further development of our products and therefore are able to offer you highly effective sound absorbers in a modern design.

Our aixFOAM philosophy: We combine customer-oriented advice with the individual, needs-based production of sound insulation solutions. Or in other words: We help you with free advice to find the ideal sound insulation for your project and start to make your absorbers directly after receiving your order. You then receive your sound insulation directly from the factory – naturally in the best quality.

  • Use of high quality acoustic foams from Germany
  • Precision manufacturing on the latest CNC cutting machines and systems
  • Standard solutions or individual small and series manufacturing of noise insulation
  • Advice, planning, production and brokering of assembly partners
An aixFOAM employee manufactures sound absorbers for sound insulation.
Brand quality
from the manufacturer
"Made in Germany"
Production
for you, individually
in a few days
Experience
for 65 years
soundproofing experts
Award
ISO 9001:2015 certified
The aixFOAM acoustic experts advise you on the subject of sound insulation free of charge.

‘Our practical door insulation kits are a simple and ingenious solution to insulate room doors against sound. For maximum effectiveness, the absorbers should always be mounted in the direction of the noise source.’

Agnes Hermanns, customer advisor

We are here for you!

Do you need help or do you have any questions about the product?

Use our help area with brief answers to the most frequently asked questions from our customers.

Of course we are happy to help you with advice, free of charge.

+49 2403 / 83830 - 22
Monday to Friday
08:00 o'clock to 17:00 o'clock

sales@aixfoam.com
Daily from 00.00 – 24.00 o'clock

Impressions?

Here you will find some application images of our door insulation set.

Application pictures of our door insulation set
