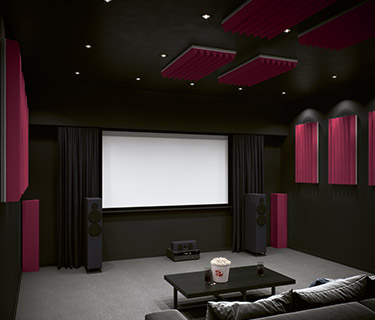

- Matched set of wall/ceiling absorbers and bass absorbers for optimal acoustics in all frequency ranges
- Comes in 4 colour variations
- Easy and flexible installation thanks to the upFRAME (mounting suspension cassettes)
Product data
Content
Format/ material thicknesses
ROWS: Rectangular panel with triangular structure, 100 cm x 50 cm, 10 cm (material thickness)
BASSIC small: Prism, 25 cm x 25 cm (edge length), 100 cm (H)
BASSIC large: Prism, 46 cm x 46 cm (edge length), 100 cm (H)
Material
Open-cell PUR acoustic foam
Colours
anthracite, steel grey, raspberry red, orange
Fire classes
PUR-ES++ (UL94HF1)
The fire classes of the aixFOAM absorbers do not only refer to the material, but always include the products including the mounting options offered by us, such as our STICKY self-adhesive kit.
More information about the fire classes of our sound absorbers is available the relevant aixFOAM knowledge article.
Fastening options
ROWS:
upFRAME (The frame for your absorber) with
GoodVibes (Vibration dowel for decoupled wall or ceiling mounting)
BASSIC: freestanding, self-supporting
Temperatureresistance
- 40 °C to + 100 °C
UV-resistance
UV protection against yellowing thanks to UV blocker additive
Harmful substance information
Mineral fibre free, CFC-free
Tolerance
This high quality acoustic product is made on our precision machinery according to DIN 7715 Part 5 P3.
In the production (foaming) of this acoustic material different sized pores (voids) can arise. Voids are typical for the material, do not represent a quality defect and do not affect the acoustic properties of the absorber.
More information about this product is available, if required, in the accompanying datasheet. We are happy to provide you with this upon request.
Absorption values
The measurements of the absorption coefficient were performed on PUR-ES acoustic foams from RWTH Aachen. All values refer to absorbers with a size of 100 cm x 50 cm and were calculated according to DIN 52212.
Sound absorption values for ROWS sound absorbers with triangular profile
Frequency
range |
Height
10 cm |
| 125 Hz |
0,17 |
250 Hz |
0,67 |
| 500 Hz |
0,91 |
| 1000 Hz |
1,03 |
| 2000 Hz |
1,05 |
| 4000 Hz |
1,08 |
Our aixFOAM sound absorbers have been tested for Hertz and pores in the reverberation chamber of renowned institutions such as RWTH University or the Technical University in Aachen. The sound absorption coefficients according to DIN 52212 stated above were calculated in extensive measurements.
Absorption values and installation für Bassabsorber BASSIC
Unlike for sound absorbers in panel form, which are placed over a large area on wall or ceiling surfaces, it does not make sense to specify pure sound absorption degrees for free-standing absorbers, such as our low-frequency absorbers. This would not be meaningful or physically useful.
Therefore, our bass absorbers were tested by the RWTH University in extensive measurements according to DIN 52212 on their sound absorption effect, taking into account the equivalent absorption area. You can find the measured values on the article page of our bass absorbers BASSIC. The complete test report with detailed explanations and all determined values can be found in the corresponding data sheet if required. We will gladly send you this on request.
Misunderstandings are common when setting up bass absorbers. In this article we have therefore gathered detailed information on the correct positioning and operation of our bass absorbers.
Learn more (German)
